Ultraformer Type "A" and "B"
Phenix Radio Corp.; New York
- País
- Estados Unidos
- Fabricante / Marca
- Phenix Radio Corp.; New York
- Año
- 1924
- Categoría
- Pieza de radio (no módulo)
- Radiomuseum.org ID
- 221724
-
- alternative name: Lacault, R.E.
- Gama de ondas
- - no hay
- Tensión de funcionamiento
- Red: Corriente alterna (CA, Inglés = AC)
- Altavoz
- - - No hay salida de sonido.
- Material
- Materiales diversos
- de Radiomuseum.org
- Modelo: Ultraformer Type "A" and "B" - Phenix Radio Corp.; New York
- Anotaciones

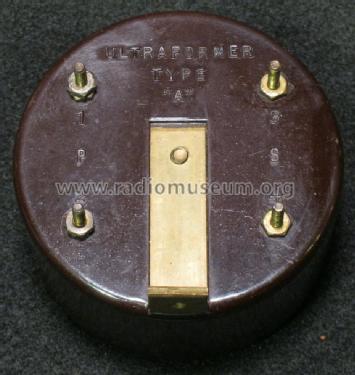

- Ultraformer type "A" and "B". Used as RF transformers in the Ultradyne (L1) superhet, along with other later models of Ultradyne radios. The type "A" transformer has less coupling compared to the type "B" transformer, with the type "A" having about a 0.25 inch space between the primary and secondary windings. The type "B" transformer has no space between the primary and secondary coils. The primary inductance for both types is about 1.6mH with a resistance of about 7.2 ohms. The secondary inductance for both types is about 6.1mH with a resistance of about 16 ohms.
- Precio durante el primer año
- 5.00 USD
- Mencionado en
- Radio Broadcast, Jun. 1924, p. 175
- Autor
- Modelo creado por Hans-Joachim Korn † 16.11.15. Ver en "Modificar Ficha" los participantes posteriores.
