• Country
• India

• Manufacturer / Brand
• Philips; India

• Year
• 1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 149677

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• BF194 BF195 BF195 BC149C or. BC148C AC127 AC128 OA79 OA79

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Dry Batteries / 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

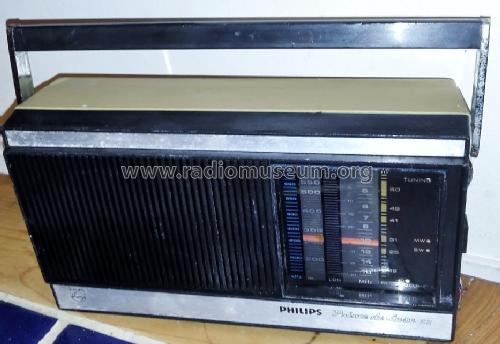

• Model: Prince de Luxe II 15RL311 /00B /00S - Philips; India

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• Ausführung 15RL311 /00B unterscheidet sich von 15RL311 /00S durch andere:
   -  Gehäusefront
   -  Gehäuserückseite
   -  Batteriefachdeckel
   -  seitliche Tragegriffbefestigung.

• Mentioned in

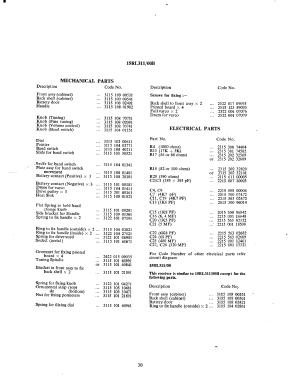

• - - Manufacturers Literature (Philips Circuits, Volume 3, 1971-73)

• Author
• Model page created by Ashis Mukerjea. See "Data change" for further contributors.
