Solid State Operational Amplifier P55AU

Philbrick Researches, George A (GAP/R).; Dedham, MA

Data
Forum
Pictures
Collections

  • Year
  • 1966 ?
  • Category
  • Miscellaneous (Other, Various) - see notes
  • Radiomuseum.org ID
  • 333471

 Technical Specifications

  • Number of Transistors
  • 6
  • Semiconductors
  • Power type and voltage
  • Powered by external power supply or a main unit. / +15 & -15 Volt
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Solid State Operational Amplifier P55AU - Philbrick Researches, George A
  • Shape
  • Miscellaneous shapes - described under notes.
  • Dimensions (WHD)
  • 57.6 x 19.1 x 46.1 mm / 2.3 x 0.8 x 1.8 inch
  • Notes

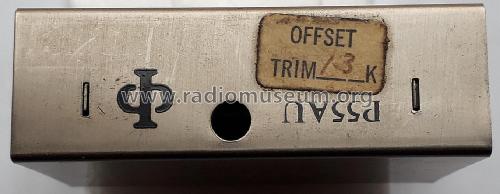

  • It is an operational amplifier module with discrete components. The module is pluggable. The metal housing is clipped and welded.

    Il s'agit d'un module amplificateur opérationnel monté avec des composants discrets.
    Le module est enfichable. Le boîtier métallique est clipsé et soudé.

  • Net weight (2.2 lb = 1 kg)
  • 0.052 kg / 0 lb 1.8 oz (0.115 lb)
  • Price in first year of sale
  • 20.00 $
  • Author
  • Model page created by Xavier Motti. See "Data change" for further contributors.
