10L43AU

• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1959

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 213217

• Picture

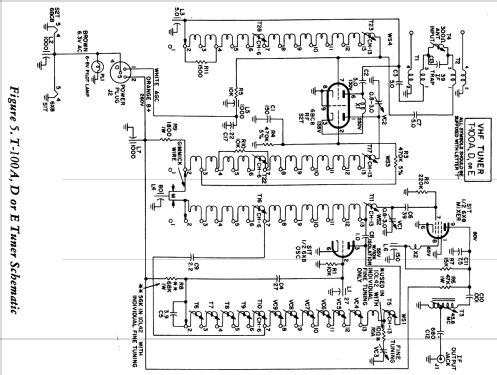

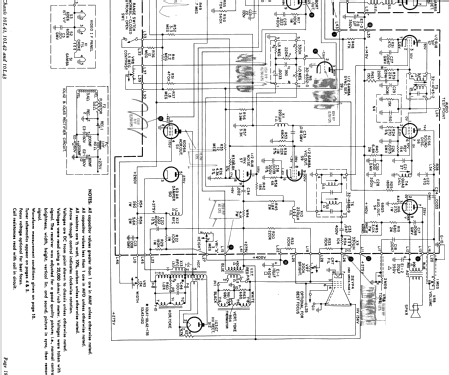

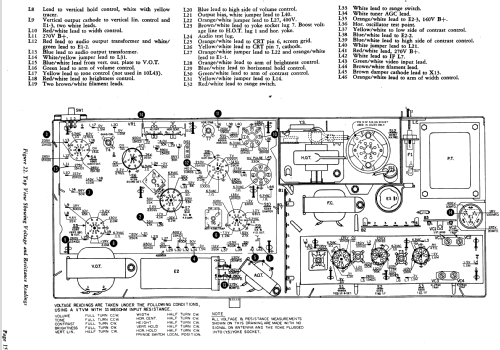

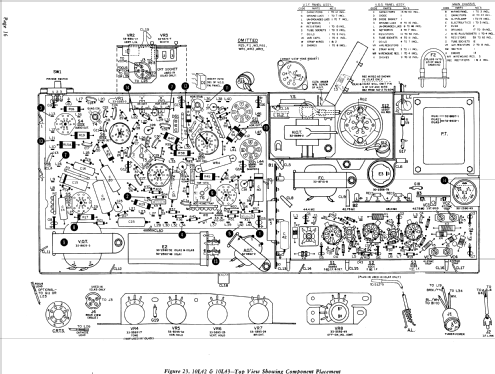

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 6X8 6BC8 6AF4A or 6AF4B 6AM8A or 6AM8 6DE6 6DE6 6BQ5 6DR7 6CS6 6U8 or 6U8A or 6EA8 6CG7 6AW8A 6DA4 6DQ6A 1G3GT 17DAP4 or 17DRP4 or 21EVP4

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 105-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: 10L43AU - Philco, Philadelphia Stg. Batt

• Shape
• Chassis only or for «building in»

• Notes

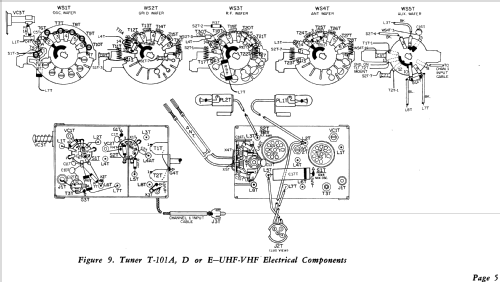

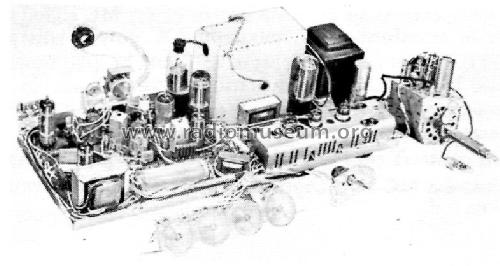

• The Philco 10L43AU is a chassis for 17" or 21" b/w TV's with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Used in various "H" line Philco TV's. Uses VHF tuner T-101D, UHF tuner T-28C and picture tube 17DAP4 or 17DRP4 or 21EVP4. This chassis is similar to chassis 10L43U except has tone control.

• Source of data
• - - Manufacturers Literature

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by John Kusching. See "Data change" for further contributors.
