111 Lowboy

Philco, Philadelphia Stg. Batt. Co.; USA

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Philco, Philadelphia Stg. Batt. Co.; USA

Year
1931

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
18800

Schematics

111 Lowboy; Philco, Philadelphia (ID = 18314) Radio — Philco, Philadelphia 111 Lowboy (3)

111 Lowboy; Philco, Philadelphia (ID = 471621) Radio — Philco, Philadelphia 111 Lowboy (3)

111 Lowboy; Philco, Philadelphia (ID = 471622) Radio — Philco, Philadelphia 111 Lowboy (3)

111 Lowboy; Philco, Philadelphia (ID = 471623) Radio — Philco, Philadelphia 111 Lowboy (3)

111 Lowboy; Philco, Philadelphia (ID = 471624) Radio — Philco, Philadelphia 111 Lowboy (3)

111 Lowboy; Philco, Philadelphia (ID = 2832336) Radio — Philco, Philadelphia 111 Lowboy (3)

111 Lowboy; Philco, Philadelphia (ID = 2865353) Radio — Philco, Philadelphia 111 Lowboy (3)

111 Lowboy; Philco, Philadelphia (ID = 2898104) Radio — Philco, Philadelphia 111 Lowboy (3)

111 Lowboy; Philco, Philadelphia (ID = 2899454) Radio — Philco, Philadelphia 111 Lowboy (3)

111 Lowboy; Philco, Philadelphia (ID = 2899455) Radio — Philco, Philadelphia 111 Lowboy (3)

111 Lowboy; Philco, Philadelphia (ID = 2899456) Radio — Philco, Philadelphia 111 Lowboy (3)

111 Lowboy; Philco, Philadelphia (ID = 2899457) Radio — Philco, Philadelphia 111 Lowboy (3)

111 Lowboy; Philco, Philadelphia (ID = 2899458) Radio — Philco, Philadelphia 111 Lowboy (3)

111 Lowboy; Philco, Philadelphia (ID = 2905780) Radio — Philco, Philadelphia 111 Lowboy (3)

111 Lowboy; Philco, Philadelphia (ID = 2905804) Radio — Philco, Philadelphia 111 Lowboy (3)

111 Lowboy; Philco, Philadelphia (ID = 2905813) Radio — Philco, Philadelphia 111 Lowboy (3)

111 Lowboy; Philco, Philadelphia (ID = 2906517) Radio — Philco, Philadelphia 111 Lowboy (3)

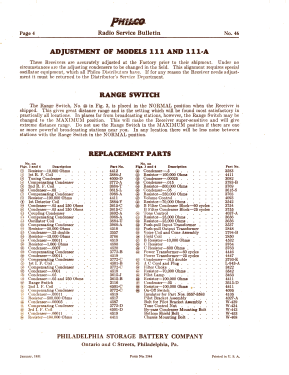

111 Lowboy; Philco, Philadelphia (ID = 2913559) Radio — Philco, Philadelphia 111 Lowboy (3)

111 Lowboy; Philco, Philadelphia (ID = 2914414) Radio — Philco, Philadelphia 111 Lowboy (3)

111 Lowboy; Philco, Philadelphia (ID = 3019680) Radio — Philco, Philadelphia 111 Lowboy (3)

111 Lowboy; Philco, Philadelphia (ID = 405713) Radio — Philco, Philadelphia 111 Lowboy (2)
Ebay Nr. 140188778619 Bild bearbeitet.

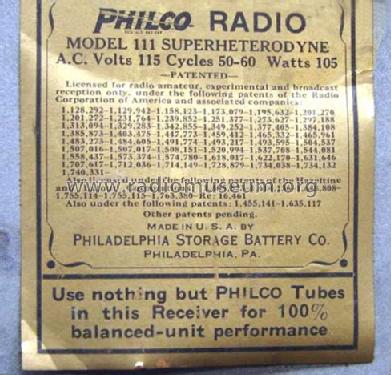

111 Lowboy; Philco, Philadelphia (ID = 405714) Radio — Philco, Philadelphia 111 Lowboy (2)
Ebay Nr. 140188778619 Bild bearbeitet.

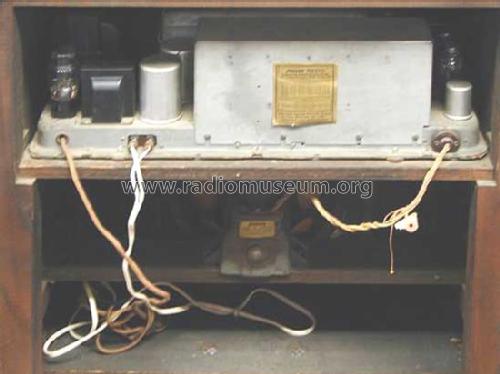

111 Lowboy; Philco, Philadelphia (ID = 405715) Radio — Philco, Philadelphia 111 Lowboy (2)
Ebay Nr. 140188778619 Bild bearbeitet.

111 Lowboy; Philco, Philadelphia (ID = 666800) Radio — Philco, Philadelphia 111 Lowboy (2)

111 Lowboy; Philco, Philadelphia (ID = 666801) Radio — Philco, Philadelphia 111 Lowboy (2)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
11

Valves / Tubes
24 24 24 24 27 27 27 27 45 45 80

Main principle
Superhet with RF-stage; ZF/IF 175 kHz

Wave bands
Broadcast only (MW).

Power type and voltage
Alternating Current supply (AC) / 115 Volt

Loudspeaker
Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

Material
Wooden case

from Radiomuseum.org
Model: 111 Lowboy - Philco, Philadelphia Stg. Batt

Shape
Console, Lowboy (legs < 50 %).

Notes
Models 111 and 111A were Philco's first superheterodyne radios and were available in a lowboy or a highboy cabinet. Model 111 is for 50-60 Hz and model 111A is for 25-60 Hz.

Price in first year of sale
1,200.00 SFR

External source of data
E. Erb 3-907007-36-0

Circuit diagram reference
Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)

Mentioned in
Philco Radio 1928-1942

Literature/Schematics (1)
Philco 1928-36 Wiring Diagrams, Parts Lists, and Essential Service Data
