- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1932
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 50452
Radio News
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superhet with RF-stage; ZF/IF 175 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 112X - Philco, Philadelphia Stg. Batt
- Shape
- Console with any shape - in general
- Notes
-

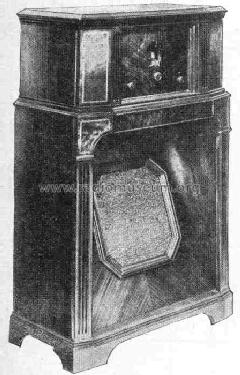

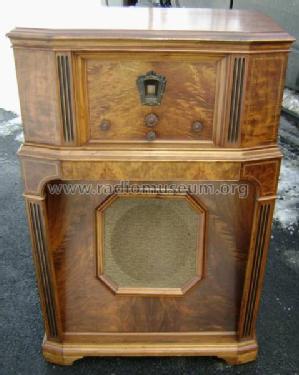

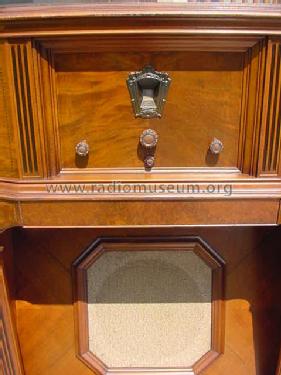

Model 112X was a late version of model 112 with a new console cabinet design having an inclined soundboard. Earlier versions introduced in 1931 include a lowboy and highboy cabinet.
Model 112X before serial Number 174001 used two type 45 tubes for power output.
- Price in first year of sale
- 150.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Circuit diagram reference

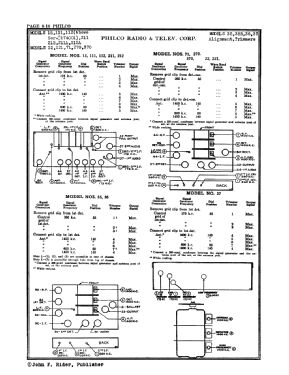

- Rider's Perpetual, Volume 4 = ca. 1934 and before
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition (Philco Radio 1928-1942, Ramirez)
