• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 50455

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes

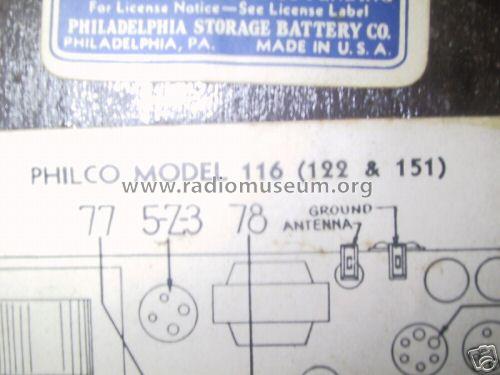

• 78 77 76 78 78 37 77 42 6A3 6A3 5Z3

• Main principle
• Superhet with RF-stage; ZF/IF 460 kHz

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 15 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

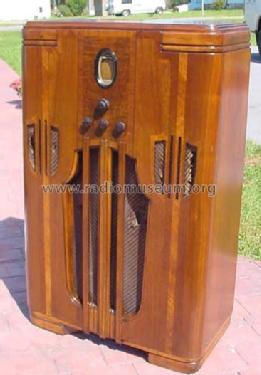

• Model: 116X - Philco, Philadelphia Stg. Batt

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 27 x 42.5 x 12 inch / 686 x 1080 x 305 mm

• Notes

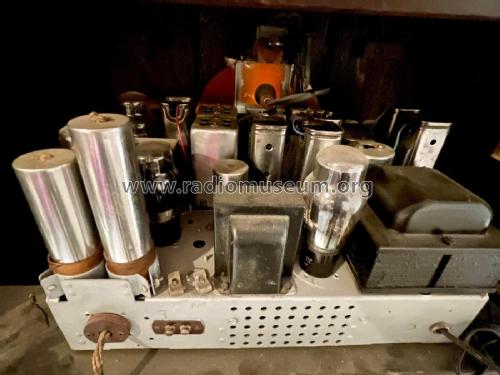

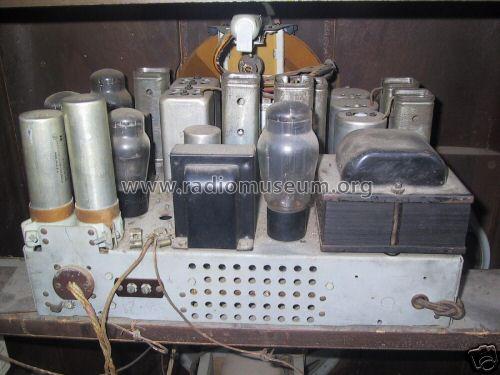

• The Philco model 116 series is a follow-on to its model 16 series. The 116 chassis has 11 tubes, a shadow meter (tuning aid), and five bands (LW, BC, and 3 SW bands: 1.5-4.1, 4.1-10.0, and 9.7-22.5 MHz).

  There are four distinct models with different cabinet styles. The early version (1935) of 116B is a shouldered tombstone with a 10.5 inch speaker; the late version (1936) is a simpler rectangular tombstone with an 8 inch speaker. Both versions of 116B use a code 121 chassis with type 42 output tubes and 10 watts output.

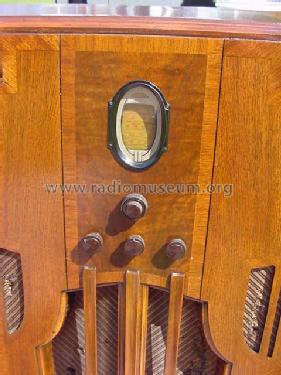

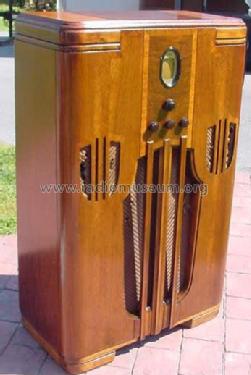

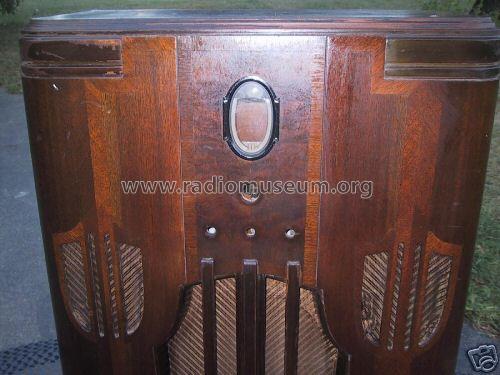

  Model 116X (1935-36) is a floor type console which includes two passive radiators (Philco called them "acoustic clarifiers") in addition to the driven speaker, and used a code 122 chassis with type 6A3 output tubes and 15 watts output.

  Model 116PX is a radio-phonograph using the code 122 chassis. The cabinet is similar to that of 116X, but somewhat taller to make room for the phonograph under the top lid.

• Net weight (2.2 lb = 1 kg)
• 90 lb (90 lb 0 oz) / 40.860 kg

• Price in first year of sale
• 175.00 $

• External source of data
• Ernst Erb

• Source of data
• Philco Radio 1928-1942

• Circuit diagram reference
• Rider's Perpetual, Volume 6 = 1935 and before

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)
• Philco Service Bulletin # 222A; Philco Wiring Diagrams, Parts Lists, and Ess. Serv. Data 1928-36

• Other Models

• Here you find 4007 models, 2207 with images and 3656 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philco, Philadelphia Stg. Batt. Co.; USA
