14LZX Lazy X Early 9 tubes

Philco, Philadelphia Stg. Batt. Co.; USA

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Philco, Philadelphia Stg. Batt. Co.; USA

Year
1933

perfect model

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
50465

Schematics

14LZX Lazy X; Philco, Philadelphia (ID = 140425) Radio — Philco, Philadelphia 14LZX Lazy X (3)

14LZX Lazy X; Philco, Philadelphia (ID = 518939) Radio — Philco, Philadelphia 14LZX Lazy X (3)

14LZX Lazy X; Philco, Philadelphia (ID = 518941) Radio — Philco, Philadelphia 14LZX Lazy X (3)

14LZX Lazy X; Philco, Philadelphia (ID = 2840169) Radio — Philco, Philadelphia 14LZX Lazy X (3)

14LZX Lazy X; Philco, Philadelphia (ID = 2849318) Radio — Philco, Philadelphia 14LZX Lazy X (3)

14LZX Lazy X; Philco, Philadelphia (ID = 2849825) Radio — Philco, Philadelphia 14LZX Lazy X (3)

14LZX Lazy X; Philco, Philadelphia (ID = 2849894) Radio — Philco, Philadelphia 14LZX Lazy X (3)

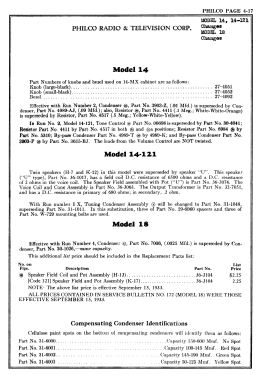

14LZX Lazy X; Philco, Philadelphia (ID = 2851480) Radio — Philco, Philadelphia 14LZX Lazy X (3)

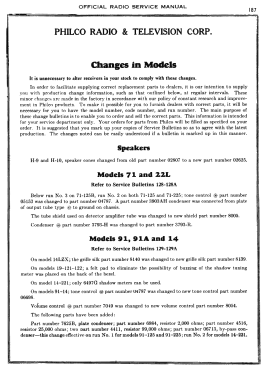

14LZX Lazy X; Philco, Philadelphia (ID = 2897761) Radio — Philco, Philadelphia 14LZX Lazy X (3)

14LZX Lazy X; Philco, Philadelphia (ID = 1591513) Radio — Philco, Philadelphia 14LZX Lazy X (2)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
9

Valves / Tubes
44 36 44 37 37 37 42 42 80

Main principle
Superhet with RF-stage; ZF/IF 260 kHz

Wave bands
Broadcast only (MW).

Power type and voltage
Alternating Current supply (AC) / 115 Volt

Loudspeaker
2 Loudspeakers

Material
Wooden case

from Radiomuseum.org
Model: 14LZX Lazy X [Early 9 tubes] - Philco, Philadelphia Stg. Batt

Shape
Console: Chairside Radio.

Notes
The model 14 series had two chassis types -- an earlier code 121 chassis which was similar to model 91, with tube lineup 44 36 44 37 37 37 42 42 80 and IF frequency 260 kHz, and a later chassis with codes 122 and 123 with tube lineup 78 6A7 78 37 77 42 42 42 80 and IF frequency 175 kHz. Models using the code 121 chassis include 14LZX chairside with separate speaker cabinet (early version had a variant of the code 121* chassis with one band and two speakers; late had another variant of code 121* with two bands and one speaker), the early version of 14L lowboy, and the early version of 14X console. Models using the codes 122 and 123 chassis included 14B cathedral, the late version of 14L lowboy, 14HS highboy, 14D highboy with doors, the middle and late versions of 14X console (late version has a new cabinet style with figures of musicians at the sides of the tuning dial escutcheon), and the 14RX chairside with separate speaker cabinet. All except the early 14LZX had two bands, with the bandswitch combined with the power switch. (* There is also evidence that the early chassis with one speaker was code 126 and the other version of the early chassis with two speakers was code 226, similar to the codes used for model 91.)

Price in first year of sale
150.00 $

External source of data
Ernst Erb

Source of data
The Radio Collector's Directory and Price Guide 1921 - 1965

Circuit diagram reference
Rider's Perpetual, Volume 3 = 1933 and before

Mentioned in
Collector's Guide to Antique Radios 4. Edition (Philco Radio 1928-1942, Ramirez)

Literature/Schematics (1)
Philco 1928-36 Wiring Diagrams, Parts Lists, and Essential Service Data
