• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Dominion Radio & Electrical Corp. Ltd (Dreco), Philco; Auckland

• Year
• 1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 167362

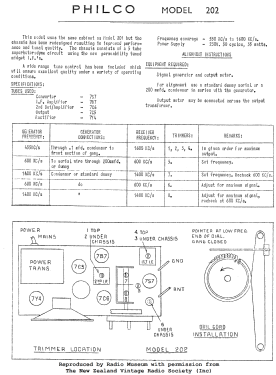

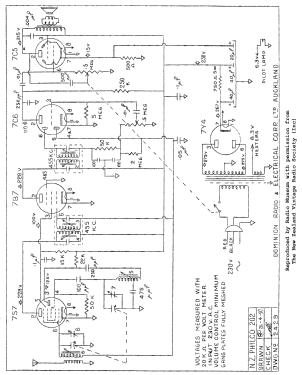

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 7S7 7B7 7C6 7C5 7Y4

• Main principle
• ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Bakelite case

• from Radiomuseum.org

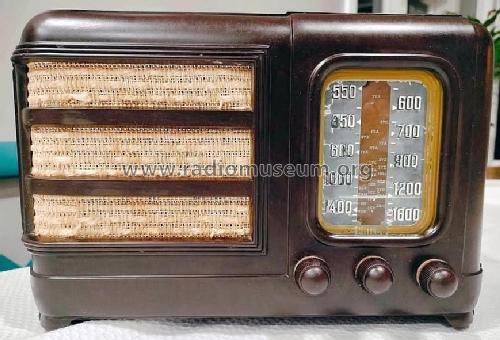

• Model: Philco 202 - Dominion Radio & Electrical

• Dimensions (WHD)
• 305 x 210 x 178 mm / 12 x 8.3 x 7 inch

• Notes

• This model appears in a list compiled by John Stokes during his research into the history of New Zealand radio.

  There are many US models 1938 to 1940 using the same case moulding (examples 40-90CB, PT-30 Transitone, TH-3 Transitone, 38-14CB and more) but they are different chassis and tubes. See also the 200 in the same case, but a different chassis with tube line up the same as many US Philco (but not same chassis /tube line up as the models listed here!)

  The All-Wave UK Philco A3626 has the same tubes as has the MW(BC) only NZ HMV Little Nipper 495BC.

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
