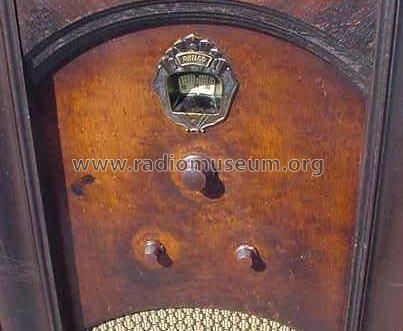

20 Baby Grand Console, early
Philco, Philadelphia Stg. Batt. Co.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1930/1931
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 120621
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- TRF without regeneration; Screengrid 1926-1935
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 20 Baby Grand [Console, early] - Philco, Philadelphia Stg. Batt
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- One dial (primary tuning control knob)
The model 20 series marked Philco's first use of the term "Baby Grand," and the term applies to both a cathedral and a small console. There is also a concurrent larger console called the "Concert Grand." After the model 20 series, the term "Baby Grand" was used only for cathedrals.
There were two versions (early and late) of the model 20 Baby Grand console with slightly different cabinet styles.
- Source of data
- Collector's Guide to Antique Radios (7th Edition)
- Circuit diagram reference
- Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
- Mentioned in
- Philco Radio 1928-1942
- Literature/Schematics (1)
- Philco 1928-36 Wiring Diagrams, Parts Lists, and Essential Service Data
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
