2265N 121
Philco, Philadelphia Stg. Batt. Co.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1934/1935 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 312723
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Wave bands
- Broadcast (MW), Police, sometimes also early TV (75-200m).
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org

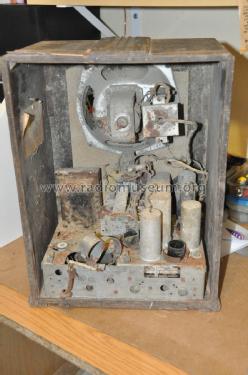

- Model: 2265N 121 - Philco, Philadelphia Stg. Batt
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 330 x 430 x 230 mm / 13 x 16.9 x 9.1 inch
- Net weight (2.2 lb = 1 kg)
- 10.2 kg / 22 lb 7.5 oz (22.467 lb)
- Author
- Model page created by Mario Berta. See "Data change" for further contributors.
