• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1955 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 331530

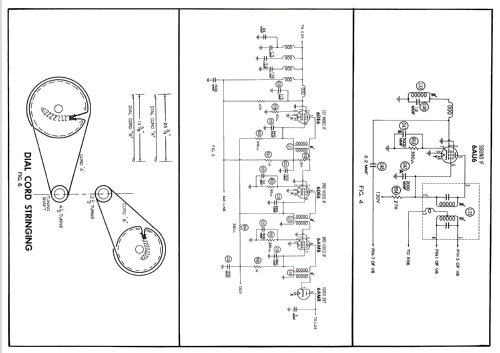

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superhet with RF-stage

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• from Radiomuseum.org
• Model: 22C4120 Ch= TV-300 - Philco, Philadelphia Stg. Batt

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 276 Folder 7)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 299 folder 1 Production Changes Bulletin 139 dated 12-55)

• Literature/Schematics (3)
• Photofact Folder, Howard W. SAMS (Set 305 Folder 1 Production Changes Bulletin 143 dated 2-56)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
