• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1932/1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 18826

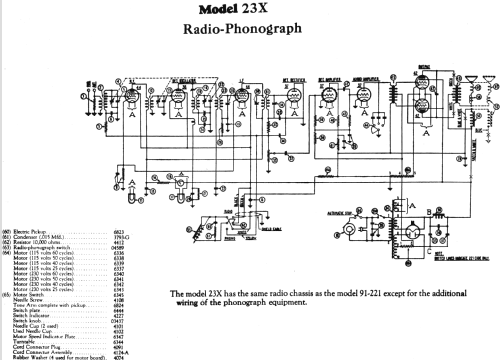

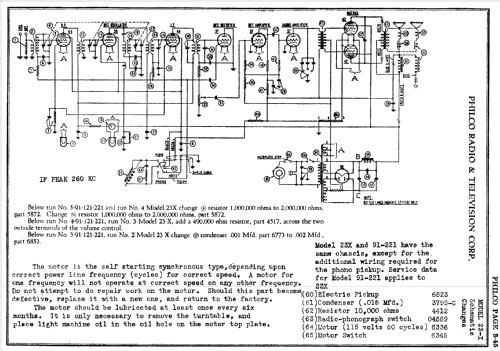

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 44 36 44 37 37 37 42 42 80

• Main principle
• Superhet with RF-stage; ZF/IF 260 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: 23 X Radio-Phonograph - Philco, Philadelphia Stg. Batt

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 27.5 x 44.5 x 0 inch / 699 x 1130 x 0 mm

• Notes

• Model 23X is a radio-phonograph based on a model 91 radio chassis. The cabinet is a floor model with inclined sounding board.

  This radio includes a shadow meter (tuning aid).

• Price in first year of sale
• 195.00 $

• External source of data
• E. Erb 3-907007-36-0

• Circuit diagram reference
• Die «Thali Schemasammlung» führt das Modell.

• Mentioned in
• Philco Radio 1928-1942

• Literature/Schematics (1)
• Rider's Perpetual, Volume 3 = 1933 and before (Philco Wiring Diagrams, Parts Lists, and Essential Service Data 1928-1936)

• Literature/Schematics (2)
• Pre-War Consoles

• Literature/Schematics (3)

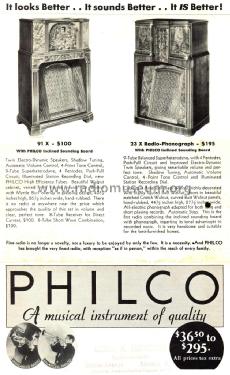

• Philco Folder Form. 2952.
