• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 338332

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• 6BQ7A 6X8 6CB6 6CB6 6CB6 6AW8 6AU6 6T8 6W6GT 12BR7 6BQ6GT 12AU7 6CD6G 6AX4GT 1B3GT 5U4GB 24VP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 24C6005 Ch= TV304 - Philco, Philadelphia Stg. Batt

• Shape
• Tablemodel, with any shape - general.

• Notes

• Philco model 24C6005 is a 24” b/w TV with US standard VHF tuner channels 2 thru 13.

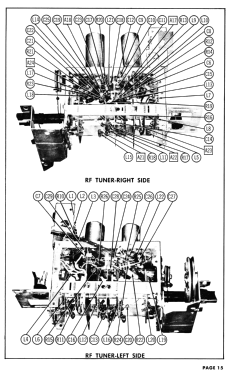

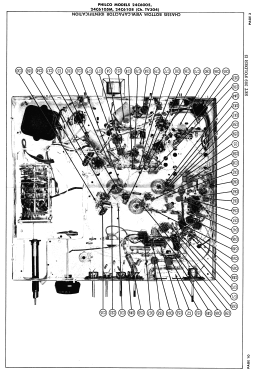

  Equipped with chassis TV304, VHF tuner 76-8946-1 or 76-8946-4 and picture tube 24VP4A.


• Literature/Schematics (1)

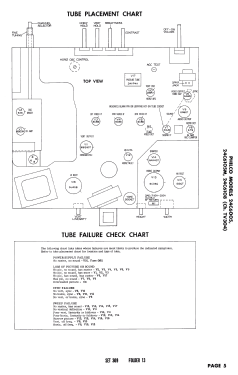

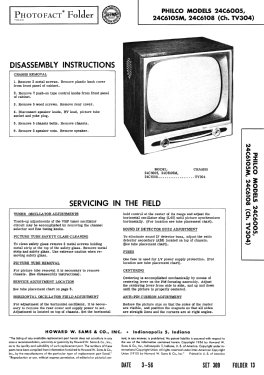

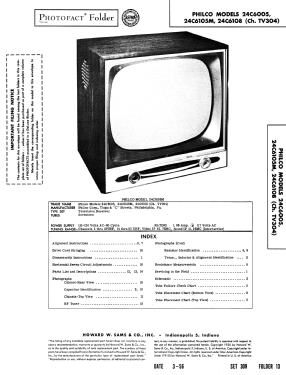

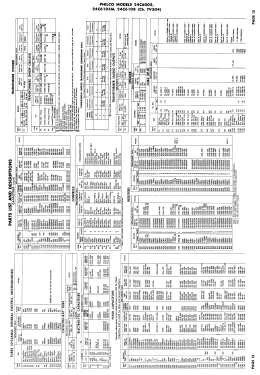

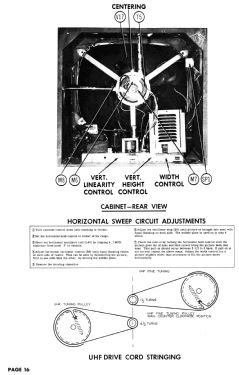

• Photofact Folder, Howard W. SAMS (Set 309 Folder 13 dated 3-56)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
