• Year
  • 1934
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 140522

Click on the schematic thumbnail to request the schematic as a free document.

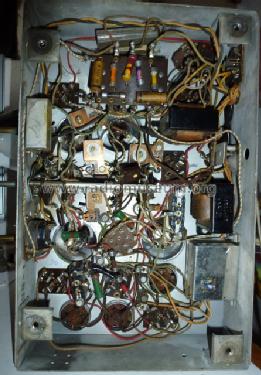

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 460 kHz
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Power type and voltage
  • Storage and/or dry batteries / 135, 67.5, 2, -3, -3, & -7.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 34B [Middle] - Philco, Philadelphia Stg. Batt
  • Shape
  • Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
  • Notes
  • Philco's model 34 series used a 4-band (BC - 23 MHz) 7-tube chassis powered by batteries. The standard model 34 chassis used a 2 volt A supply from a storage battery, while the 34A chassis was designed for dry battery A supply and had an extra ballast tube in series with the A supply, presumably to lower the A supply from 3 to 2 volts. Both types of chassis used two separate -3 V C batteries, one with a connection common to the other batteries, and one independent.

    There were three versions of the model 34B table radio. The early version (1934) used the flat-front version of one of Philco's classic cathedral cabinet designs with spade-shaped speaker opening. The middle version (1934) used a different cathedral cabinet with a scalloped top. The late version (1935) was a shouldered tombstone with a lyre-shaped speaker opening with three vertical bars through the center.

    There were two versions of the 32L lowboy - an early version (1934)with four mostly-vertical bars through the speaker opening, and a late version (1934-35) with nested V- and W-bar patterns through the speaker opening.
  • Circuit diagram reference
  • Rider's Perpetual, Volume 5 = ca. 1934 and before
  • Literature/Schematics (1)
  • Philco 1928-36 Wiring Diagrams, Parts Lists, and Essential Service Data
  • Author
  • Model page created by Thomas Albrecht. See "Data change" for further contributors.
