• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Dominion Radio & Electrical Corp. Ltd (Dreco), Philco; Auckland

• Year
• 1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 167379

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 1T4 DK40 1T4 1U5 3V4 6X4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / 230 or 90 & 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

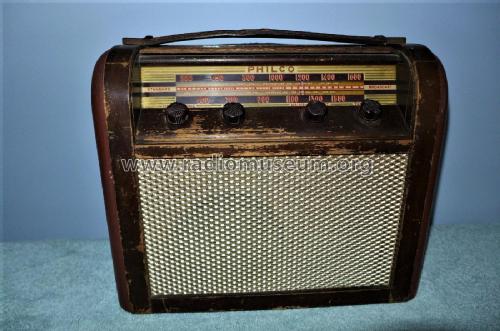

• Model: Philco 354 - Dominion Radio & Electrical

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• This model appears in a list compiled by John Stokes during his research into the history of New Zealand radio.

  6-valve superhet with RF stage

  Powered by AC mains or batteries

  This model reverted back to using a valve rectifier

  Fabrikoid covering with wooden trim

  See also Model 353

• Price in first year of sale
• 37.75 £

• Mentioned in
• -- Original prospect or advert (Press 4 February 1952 Page 10)

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
