36L Early
Philco, Philadelphia Stg. Batt. Co.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1932/1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 50521

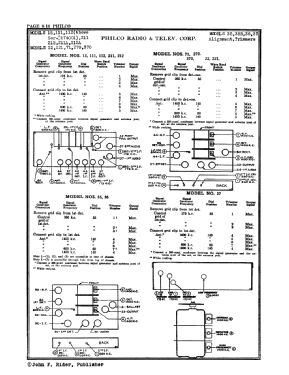

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 260 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 135, 67.5, 2, -22.5 Volt
- Loudspeaker
- Magnetic loudspeaker (reed) generic.
- Material
- Wooden case
- from Radiomuseum.org
- Model: 36L [Early] - Philco, Philadelphia Stg. Batt
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- Model 36 had three versions -- 36B (cathedral), 36D (highboy), and 36L (lowboy). Chassis identical to model 35. The lowboy had early (1932) and late (1933) versions of the cabinet, with the early version being identical to the model 71 lowboy, and the late version identical to the model 52 lowboy.
- Price in first year of sale
- 69.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Circuit diagram reference
- Rider's Perpetual, Volume 8 = 1937 and before
- Mentioned in
- The Radio Collector's Directory and Price Guide 1921 - 1965 (Philco Radio 1928-1942, Ramirez)
- Literature/Schematics (1)
- Philco Wiring Diagrams, Parts Lists, and Essential Service Data 1928-1936
