37-2620CS

Philco, Philadelphia Stg. Batt. Co.; USA

Data
Forum
Pictures
Collections

  • Year
  • 1936/1937
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 137776

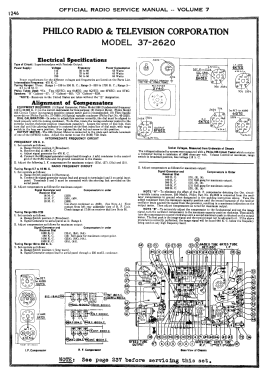

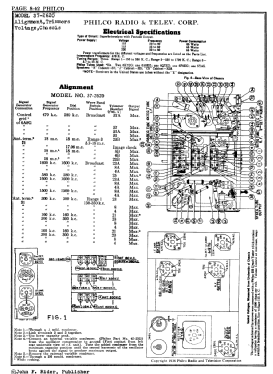

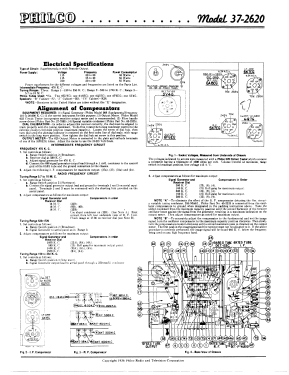

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 470 kHz
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 37-2620CS - Philco, Philadelphia Stg. Batt
  • Shape
  • Console: Chairside Radio.
  • Notes

  • The Philco model 37-2620B, 37-2620J, 37-2620CS, and 37-2620EZ are export versions of the domestic models 37-620B, 37-620J, and 37-620CS; the 37-2620EZ was exported to France and does not have a domestic model cabinet version. Like some other export models, these substitute a long wave band in place of one of the domestic version's two short wave bands. Band coverage is 150-350 kHz, BC, and 5.7-18 MHz. Tubes with -E suffix are ruggedized versions for harsh environments.

    Cabinet style is indicated by the suffix of the model number. Model 37-2620B is a tombstone, 37-2620J is a floor-type console, 37-2620CS is a chairside, and 37-2620EZ is a table model.

  • Circuit diagram reference
  • Rider's Perpetual, Volume 8 = 1937 and before
  • Author
  • Model page created by Thomas Albrecht. See "Data change" for further contributors.
