37-60B Tombstone Late

Philco, Philadelphia Stg. Batt. Co.; USA

Data
Forum
Pictures
Collections

  • Year
  • 1936/1937
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 50535

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Power out
  • 3 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 37-60B Tombstone [Late] - Philco, Philadelphia Stg. Batt
  • Shape
  • Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
  • Notes

  • The Philco model 37-60 series uses a 5-tube 2-band (BC and 2.3 - 7.4 MHz) chassis.

    There are four models in the series with different cabinet styles. The early version of 37-60B is a cathedral with an arch-shaped profile. The late version of 37-60B is a rectangular tombstone.

    The early version of 37-60F is a floor-type console with a tulip pattern for the speaker opening. The late version of 37-60F has a large rectangular speaker grill with three vertical bars in front of the speaker.

    Stein "Cathedral & Tombstone Radios" shows a model "60B" with with 3 knobs and lists only 1 band.



  • Price in first year of sale
  • 35.00 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 7 = 1936 and before
  • Literature/Schematics (1)

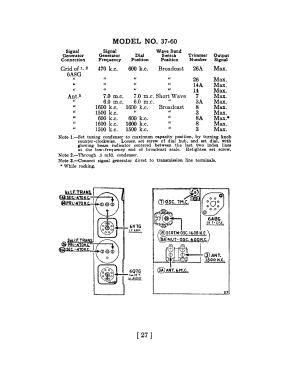

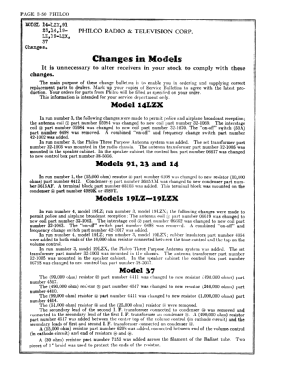

  • Philco Service Bulletin # 245
