37-660B

Philco, Philadelphia Stg. Batt. Co.; USA

Data
Forum
Pictures
Collections

  • Year
  • 1936/1937
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 137760

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • Superhet with RF-stage; ZF/IF 470 kHz
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Power out
  • 10 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 37-660B - Philco, Philadelphia Stg. Batt
  • Shape
  • Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
  • Notes

  • The Philco model 37-660 and 37-665 series (1936-37) are the successors to the previous model 660 and 665 series (1935-36). Both the 37-660 and 37-665 series use 9-tube 4-band AC-powered chassis with shadow meter (tuning aid). The difference is in the band coverage, with the 37-660 covering BC-18.2 MHz and the 37-665 covering BC-42 MHz.

    There are two models in the 37-660 series with different cabinet styles. Model 37-660B is a tombstone, and 37-660X is a console with six short legs.

    The 37-665 series offers the same cabinet styles in the 37-665B and the early version of the 37-665X. In addition, there is a late version (introduced in early 1937) of the 37-665X with a more modern console cabinet without legs.

  • Price in first year of sale
  • 90.00 $

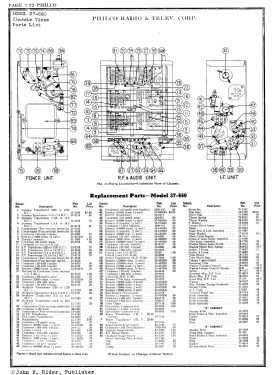

  • Circuit diagram reference
  • Rider's Perpetual, Volume 7 = 1936 and before

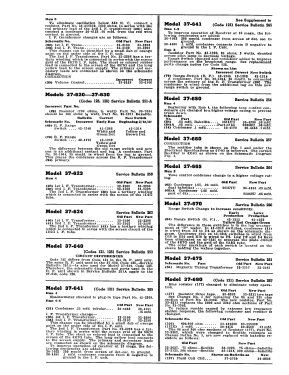

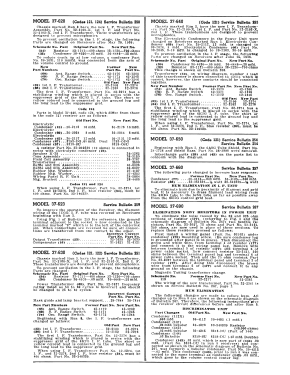

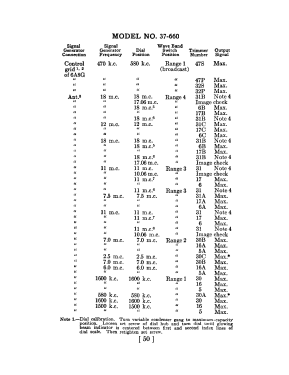

  • Literature/Schematics (3)
  • Philco Folder No. PR-430 for 1937.
  • Author
  • Model page created by Thomas Albrecht. See "Data change" for further contributors.
