37-89F Early
Philco, Philadelphia Stg. Batt. Co.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1936/1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 50556
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 470 kHz
- Wave bands
- Broadcast (MW), Police, sometimes also early TV (75-200m).
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 37-89F [Early] - Philco, Philadelphia Stg. Batt
- Shape
- Console with any shape - in general
- Notes
-
The Philco model 37-89 series is the successor to the previous model 89 series. The 37-89 chassis has six tubes and covers two bands (BC and 1.5-3.7 MHz). There are four models in the series with different cabinet styles.
The early version of the 37-89B is a cathedral with an arching profile. The late version of 37-89B is a rectangular tombstone.

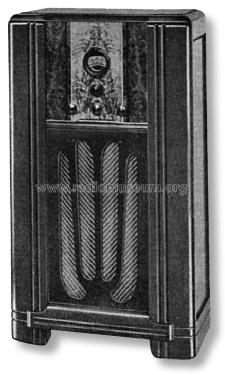

The early version of the 37-89F console has a tulip pattern in the speaker grill. The late version of 37-89F has three vertical bars in front of the speaker.
- Price in first year of sale
- 50.00 $
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 7 = 1936 and before
- Literature/Schematics (1)
- Philco Radio 1928-1942 (Philco Service Bulletin # 247)
- Literature/Schematics (2)
- Pre-War Consoles
- Literature/Schematics (3)

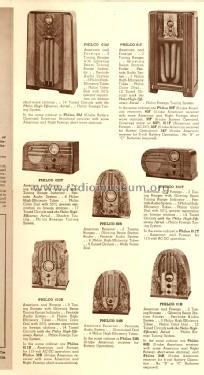

- Philco Folder No. PR-430 for 1937.
