38-15CS

Philco, Philadelphia Stg. Batt. Co.; USA

Data
Forum
Pictures
Collections

  • Year
  • 1937/1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 85233

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Power out
  • 2 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 38-15CS - Philco, Philadelphia Stg. Batt
  • Shape

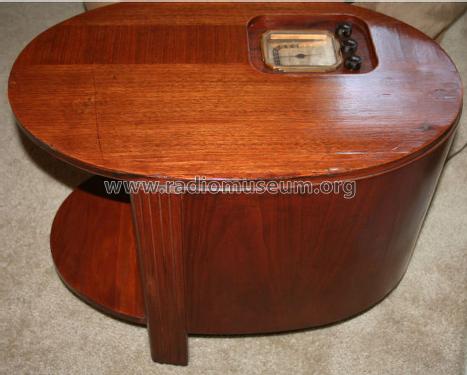

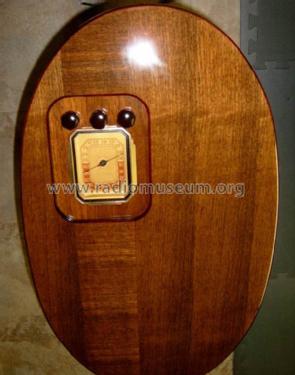

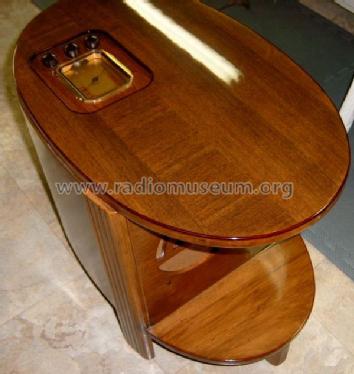

  • Console: Chairside Radio.
  • Dimensions (WHD)
  • 25 x 19 x 16 inch / 635 x 483 x 406 mm
  • Notes

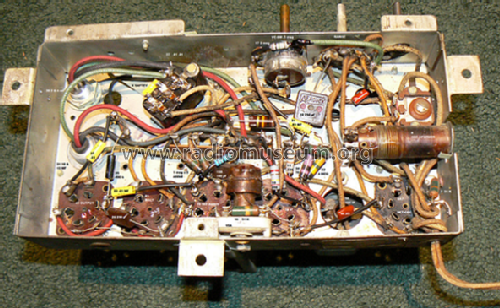

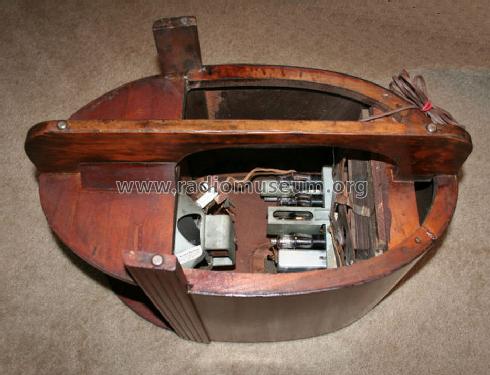

  • Model 38-15CS with chairside cabinet uses code 124 chassis.
  • Net weight (2.2 lb = 1 kg)
  • 26 lb 0 oz (26 lb) / 11.804 kg
  • Price in first year of sale
  • 50.00 $
  • Circuit diagram reference
  • Rider's Perpetual, Volume 9 = 1938 and before
  • Literature/Schematics (1)
  • Philco Service Bulletin # 291

 Collections | Museums | Literature

Collections

The model 38-15CS is part of the collections of the following members.
