• Country
• Canada

• Manufacturer / Brand
• Philco Products Ltd.; Toronto

• Year
• 1938 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 353725

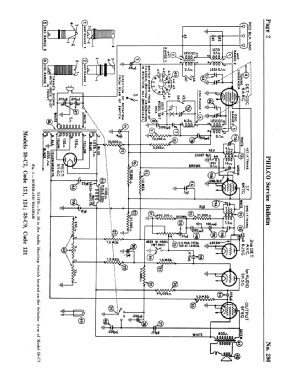

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6A8G 6K7G 6J5G 6K5G 6F6G 5Y4G

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 3 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 38-C7 Code 121 - Philco Products Ltd.; Toronto

• Shape
• Console, Highboy (legs > 50 %).

• Literature/Schematics (1)
• - - Manufacturers Literature (Service Bulletin No 280)

• Author
• Model page created by Adriano Duarte. See "Data change" for further contributors.
