• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 106129

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 78 75 41 84

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

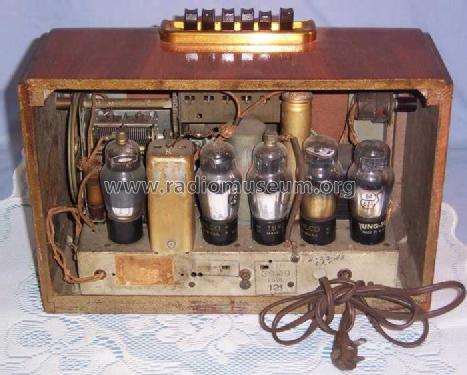

• Model: 39-19T - Philco, Philadelphia Stg. Batt

• Shape
• Tablemodel with Push Buttons.

• Notes
• The Philco model 39-19 exists at least as models 39-19F, (not 39-319F), 39-19PA, 39-19PCS, 39-19PF, 39-19PT and 39-19T, all code 121-122. The field coil of the loudspeaker is 1700 ohms. With only 5 tuned circuits it is a cheap superhet. The Canadian schematic shows only a model 39-319 but maybe the suffix AF for the 39-319AF is for a certain cabinet. It seems that the Canadian model(s) have an IF of 460 kc (some tubes have the suffix E) and the USA models of 470 kc. In Canada, this model is 319-AT.

• Source of data
• Philco Radio 1928-1942

• Circuit diagram reference
• Rider's Perpetual, Volume 10 = 1939 and before

• Mentioned in
• Machine Age to Jet Age II (page 209.)

• Literature/Schematics (1)

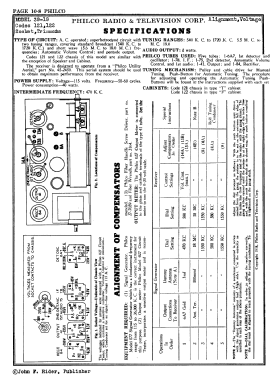

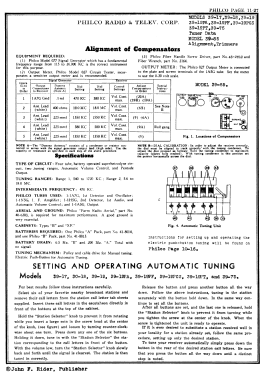

• Philco 1939 RMS Yearbook

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
