39-3A5A code 121
Philco Products Ltd.; Toronto
- Country
- Canada
- Manufacturer / Brand
- Philco Products Ltd.; Toronto
- Year
- 1939 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 359263

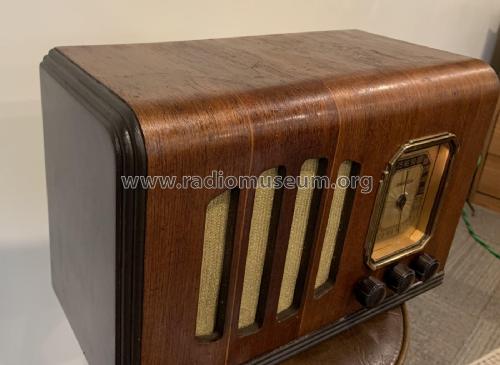

Picture from Stan Marlin.
Picture from Stan Marlin.
Picture from Stan Marlin.
Picture from Stan Marlin.
Picture from Stan Marlin.
Picture from Stan Marlin.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 25 - 40Hz, 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 39-3A5A code 121 - Philco Products Ltd.; Toronto
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
-
Similar to 39-3A5 except for the cabinet material.
- Author
- Model page created by David Erali. See "Data change" for further contributors.
