- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1939/1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 135898

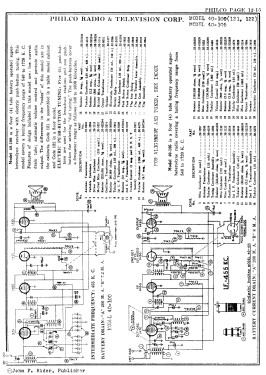

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 90 & 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 40-100F - Philco, Philadelphia Stg. Batt
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 23.8 x 36.9 x 9.8 inch / 605 x 937 x 249 mm
- Notes
-
Model 40-100F (console model) uses code 122 chassis.
- Mentioned in
- Philco Radio 1928-1942
- Literature/Schematics (1)
- Philco 1940 RMS Yearbook
- Literature/Schematics (3)
- Philco Folder PR-742, for 1940
- Author
- Model page created by Thomas Albrecht. See "Data change" for further contributors.
