• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 50648

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 1232 7J7 7B7 7C6 41 41 84

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

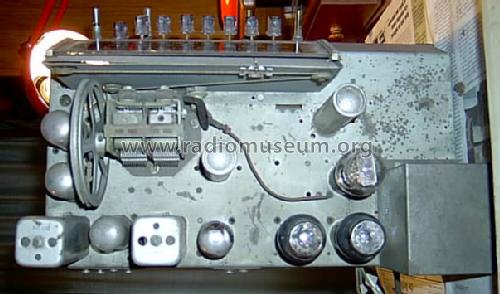

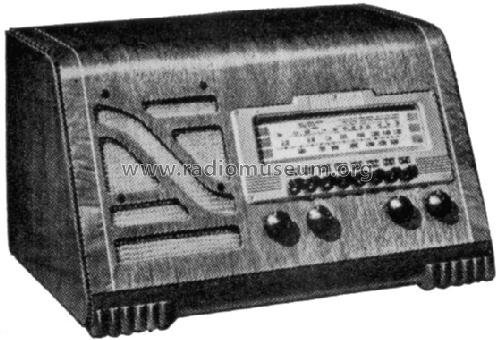

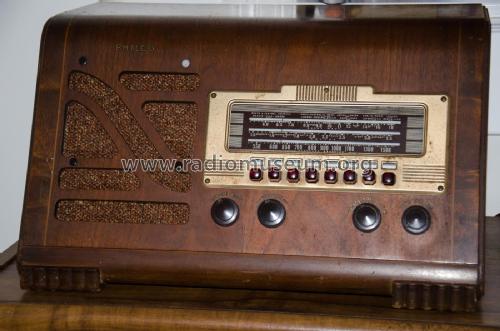

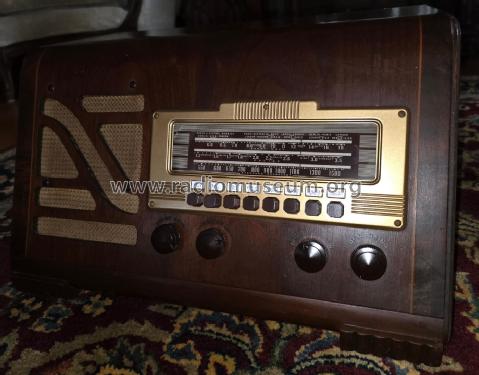

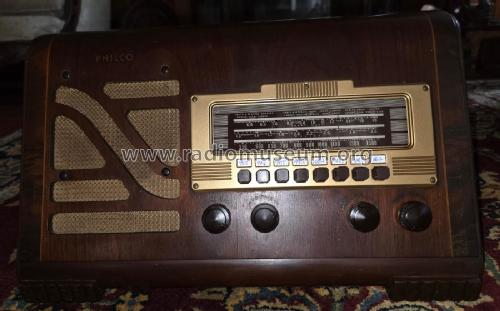

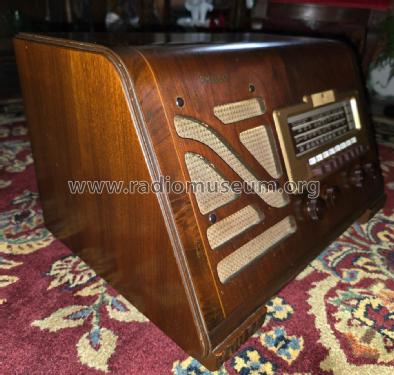

• Model: 40-150T - Philco, Philadelphia Stg. Batt

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 18.5 x 10.5 x 12.5 inch / 470 x 267 x 318 mm

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 10 = 1939 and before

• Mentioned in
• A Flick of the Switch 1930-1950

• Literature/Schematics (1)
• Philco 1940 RMS Year Book

• Literature/Schematics (2)
• Machine Age to Jet Age II (page 215.)

• Literature/Schematics (3)
• Philco Folder PR-739, for 1940
