40-165K Late
Philco, Philadelphia Stg. Batt. Co.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 152478

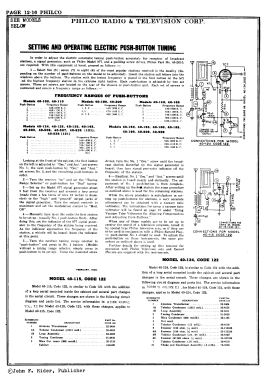

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 40-165K [Late] - Philco, Philadelphia Stg. Batt
- Shape
- Console with Push Buttons.
- Notes
- The Philco model 40-165 series includes three different consoles. Model 40-165F has four vertical bars in front of the speaker grill. Model 40-165K (early version) has three vertical bars in front of the speaker, and a flat panel front just above the speaker grill. Model 40-165K (late version) also has three bars, but the panel just above the speaker has a strip of horizontal fluted molding, as well as other minor changes. All three models have a common 6-tube 3-band chassis with 6 pushbuttons (5 for preset stations, and one to select the manual dial tuning). Band coverage is 540-1550 kHz (BC), 1.5-3.5 MHz (police), and 6-18 MHz (SW).
- Price in first year of sale
- 60.00 $
- Source of data
- Philco Radio 1928-1942
- Circuit diagram reference
- Rider's Perpetual, Volume 11 = ca. 1940 and before
- Literature/Schematics (1)
- Philco 1940 RMS Yearbook
- Literature/Schematics (2)
- Pre-War Consoles
- Author
- Model page created by Thomas Albrecht. See "Data change" for further contributors.
