• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 50680

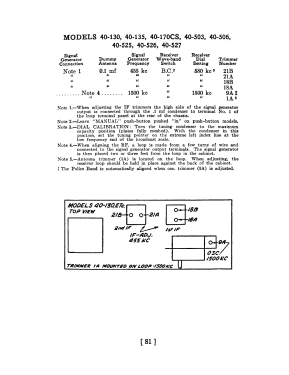

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 7C7 7A8 7B7 7C6 7B5 7Y4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Wave bands
• Broadcast (MW) and Tropical/Marine/Police Band(s) = 150-200m.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 1.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 40-525P Radio-Phonograph - Philco, Philadelphia Stg. Batt

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 26.9 x 39.3 x 16.8 inch / 683 x 998 x 427 mm

• Notes
• Model 40-525P is similar to model 40-135T but with phonograph added and a different cabinet.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965
