• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1940/1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 50712

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• XXL XXL 7B7 7B7 7C6 7B5 7Y4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Wave bands
• Broadcast (MW), Police, sometimes also early TV (75-200m).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 1.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

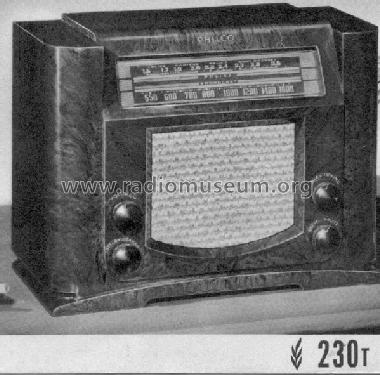

• Model: 41-230T - Philco, Philadelphia Stg. Batt

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 13.9 x 10.3 x 6.63 inch / 353 x 262 x 168 mm

• Notes

• Model 41-230T has two IF stages. In Brown plastic cabinet.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

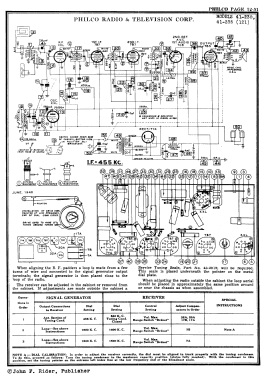

• Circuit diagram reference
• Rider's Perpetual, Volume 12 = ca. 1941 and before

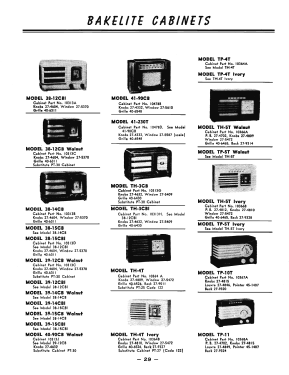

• Mentioned in
• A Flick of the Switch 1930-1950 (Philco Radio 1928-1942, Ramirez)

• Literature/Schematics (1)
• Machine Age to Jet Age II (Philco 1941 RMS Year Book)

• Literature/Schematics (3)
• Philco Folder No. PR 798 for 1941.
