41-609P code 122 Radio-Phonograph

Philco, Philadelphia Stg. Batt. Co.; USA

Data
Forum
Pictures
Collections

  • Year
  • 1941
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 155200

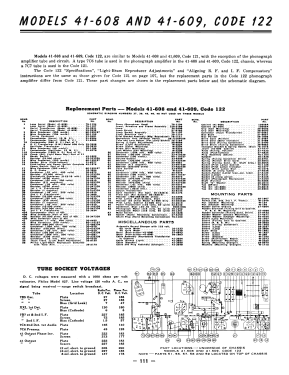

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 41-609P code 122 Radio-Phonograph - Philco, Philadelphia Stg. Batt
  • Shape
  • Console with Push Buttons.
  • Notes

  • The Philco 41-609P radio phonograph has a "Beam of Light" automatic record changer and a socket to connect the "Home Recording" record cutting attachment. The code 121 chassis differs from the code 122 chassis in the type of phonograph preamp tube (7C7 vs. 7C6, respectively).

    Model 41-609P is similar to model 41-608P, but with a more elaborate cabinet.

  • Price in first year of sale
  • 150.00 $
  • Circuit diagram reference
  • Rider's Perpetual, Volume 12 = ca. 1941 and before
  • Literature/Schematics (1)
  • Philco 1941 RMS Yearbook
  • Literature/Schematics (3)
  • Philco Folder No. PR 798 for 1941.
  • Author
  • Model page created by Thomas Albrecht. See "Data change" for further contributors.
