41-611P Radio-Phonograph
Philco, Philadelphia Stg. Batt. Co.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1940/1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 50740

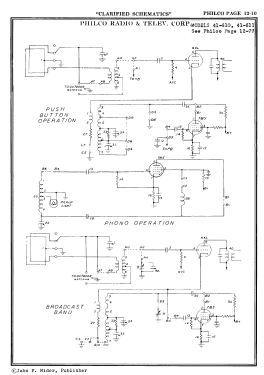

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 41-611P Radio-Phonograph - Philco, Philadelphia Stg. Batt
- Shape
- Console with any shape - in general
- Notes
-
Model 41-611P uses Philco's "Beam of Light" phonograph pickup on a Deluxe Intermix record changer (allows mixing of 10-inch and 12-inch records within stack). Two IF stages. Tuning ranges: 540-1720 kHz; 2.0 - 7.0 MHz; 9.0 - 12.0 MHz.
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 12 = ca. 1941 and before
- Mentioned in
- Philco Radio 1928-1942
- Literature/Schematics (1)
- Philco 1941 RMS Year Book
- Literature/Schematics (3)
- Philco Folder No. PR 798 for 1941.
