41-616P Radio-Phonograph

Philco, Philadelphia Stg. Batt. Co.; USA

  • Year
  • 1940/1941
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 50741

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 16
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 118 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Power out
  • 10 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 41-616P Radio-Phonograph - Philco, Philadelphia Stg. Batt
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 41 x 42 x 17.4 inch / 1041 x 1067 x 442 mm
  • Notes
  • The Philco model 41-616PW and 41-616P Radio/Phonograph Consoles with a tilt-front Georgian cabinet and 8 electric push-buttons feature wireless remote control.
    4 Frequency Bands:
    Band #1 = 540 - 1720 kHz,
    Band #2 = 2.3 - 7.0 MHz,
    Band #3 = 9.0 - 12.0 MHz,
    Band #4 = 13.5 - 18.0 MHz.

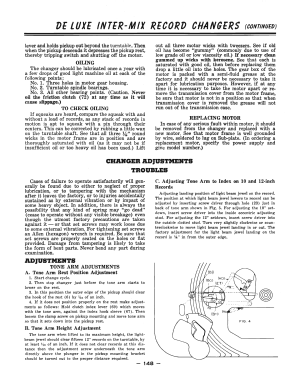

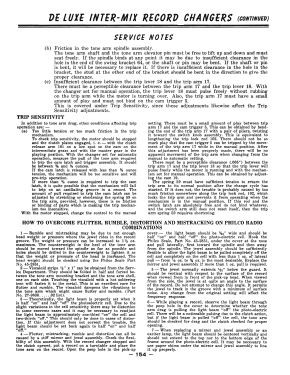

    The last 7 tubes in the tube list relate to the wireless remote control amplifier and control unit. The given size of the cabinet is excluding the remote control unit. This model uses Phlico's "Beam of Light" phonograph pickup on a Deluxe Intermix automatic record changer which allows mixing of 10-inch and 12-inch records within the stack. Mahogany cabinet. The folder from 1940 for season 1940/41 features 18 different consoles with pictures.

  • Price in first year of sale
  • 395.00 $
  • External source of data
  • Ernst Erb

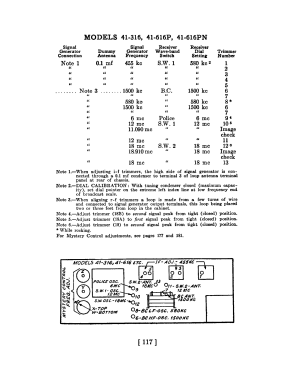

  • Circuit diagram reference
  • Rider's Perpetual, Volume 12 = ca. 1941 and before
  • Literature/Schematics (1)
  • Philco 1941 RMS Year Book
  • Literature/Schematics (3)
  • Philco Folder No. PR 798 for 1941.
