41-616PW = Walnut Radio-Phonograph
Philco, Philadelphia Stg. Batt. Co.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1940/1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 50743

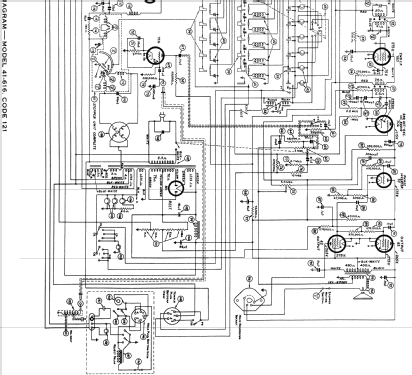

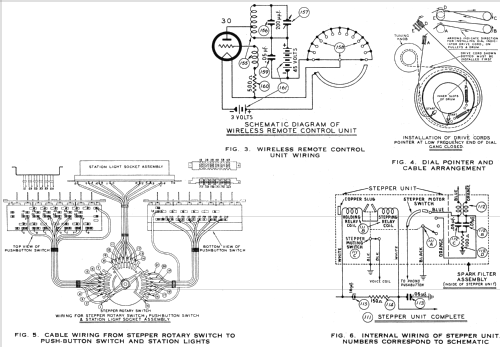

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 118 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 10 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 41-616PW = Walnut Radio-Phonograph - Philco, Philadelphia Stg. Batt
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 41 x 42 x 17.4 inch / 1041 x 1067 x 442 mm
- Notes
-
The Philco 41-616PW and model 41-616P Radio/Phonograph Consoles with a tilt-front Georgian cabinet and 8 electric push-buttons feature wireless remote control.

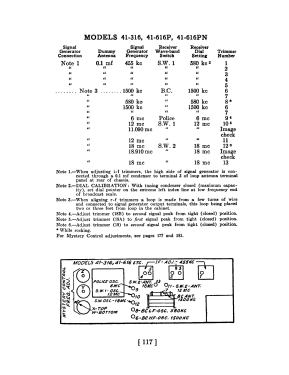

4 Frequency Bands:
Band #1 = 540 - 1720 kHz,
Band #2 = 2.3 - 7.0 MHz,
Band #3 = 9.0 - 12.0 MHz,
Band #4 = 13.5 - 18.0 MHz.

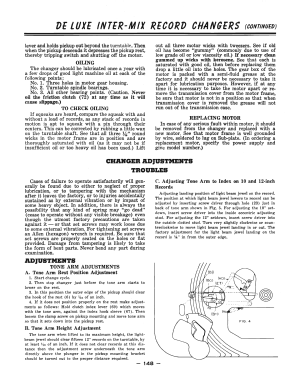

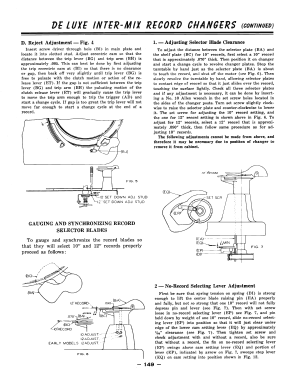

The last 7 tubes in the tube list relate to the wireless remote control amplifier and control unit. The given size of the cabinet is excluding the remote control unit. This model uses Philco's "Beam of Light" pickup with a Deluxe Intermix automatic record changer, which allows intermixing of 10-inch and 12-inch records within the stack. Walnut cabinet. The folder from 1940 for season 1940/41 features 18 different consoles with pictures.
- External source of data
- Ernst Erb

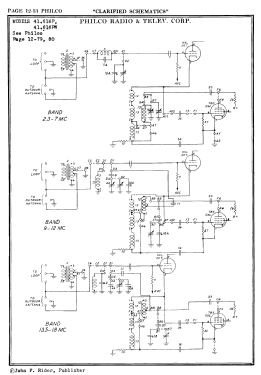

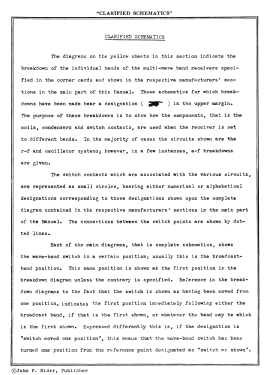

- Circuit diagram reference
- Rider's Perpetual, Volume 12 = ca. 1941 and before
- Mentioned in
- Philco Radio 1928-1942 (p.143)
- Literature/Schematics (1)

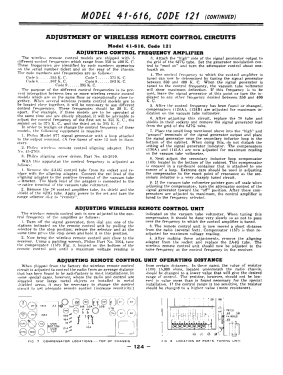

- Philco 1941 RMS Year Book
- Literature/Schematics (3)
- Philco Folder No. PR 798 for 1941.
- Other Models
-
Here you find 4007 models, 2207 with images and 3656 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Philco, Philadelphia Stg. Batt. Co.; USA
Forum contributions about this model: Philco, Philadelphia: 41-616PW = Walnut Radio-Phonograph
Threads: 1 | Posts: 2
I am working on a Philco 41-616 Remote Controlled radio console. The chassis has been "butchered" somewhat. Knowing nothing about the specific details of the mode switching relays, I need some information.
Foe example: When switching from Radio to Phono mode, what functions are switched, such as oscillator screen, audio, detector output, etc. Does anyone have any data such as: When the remote control switches to Volume Control, relay Kxxx is energized, connecting grid of Vxxx to terminal xxx of TB xx.
I have a pretty good grasp of the theory behind all of the circuits, but am completely lost in the physical details. I have an excellent set of schematics.
Any guidance would be much appreciated.
Alfred Corbin, 13.Dec.11
