- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 346406

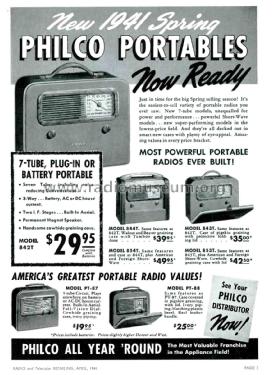

Radio Retailing, April 1941, page 7

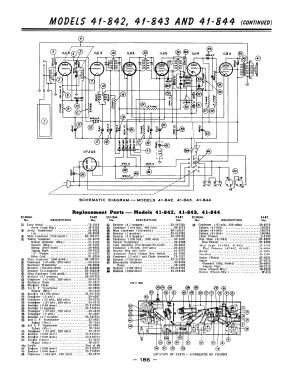

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / 115 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: 41-844T - Philco, Philadelphia Stg. Batt
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-
Same features as model 41-842T. Two IF stages. Walnut and beaver grained case. Models 41-842T, 41-843T, and 41-844T are similar except for cabinets.
- Price in first year of sale
- 39.95 USD
- Mentioned in
- Philco Radio 1928-1942 (Page 145)
- Literature/Schematics (1)
- Radio Retailing (Radio & Television R.) (April 1941, page 7)
- Literature/Schematics (2)
- Collector's Guide to Antique Radios (7th Edition) (page 188)
- Author
- Model page created by Ed Riley. See "Data change" for further contributors.
