42-358F Code 122
Philco, Philadelphia Stg. Batt. Co.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1941/1942
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 98128

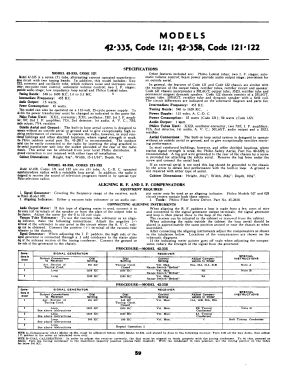

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 1 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 42-358F Code 122 - Philco, Philadelphia Stg. Batt
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 26.6 x 36.8 x 10.6 inch / 676 x 935 x 269 mm
- Notes
- Codes 121 and 122 are similar except for the speakers, output tube, rectifier tube and rectifier circuit.
- Circuit diagram reference
- Rider's Perpetual, Volume 14 = 1944 = before 1943
- Mentioned in
- Philco Radio 1928-1942
- Literature/Schematics (1)
- Philco 1942 RMS Year Book
- Author
- Model page created by Gidi Verheijen. See "Data change" for further contributors.
