• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 135408

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 7A8 7B7 7C6 35A5 35Z3

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org

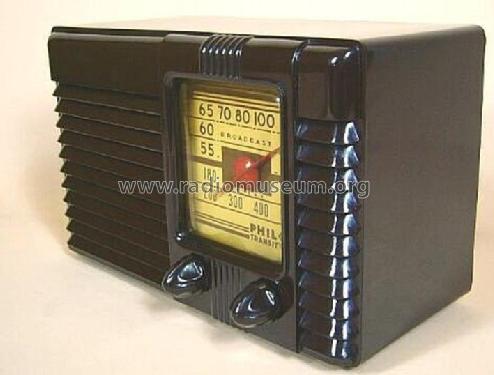

• Model: 42-PT-25 [1941] - Philco, Philadelphia Stg. Batt

• Shape
• Tablemodel, with any shape - general.

• Notes

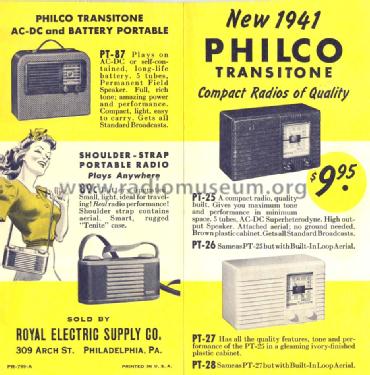

• Model 42-PT-25 appears to be similar or identical to the 1939/40 model PT-25.

  Model 42-PT26 has a tuning range from 540 to 1580 kHz, dial scale ends with 150

  Model 42-PT25 has a tuning range from 540 to 1720 kHz, dial scale ends with 170

• Mentioned in
• Philco Radio 1928-1942

• Literature/Schematics (1)
• Philco 1942 RMS Yearbook

• Author
• Model page created by Thomas Albrecht. See "Data change" for further contributors.
