• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1941/1942

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 50847

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 6A7 84

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org

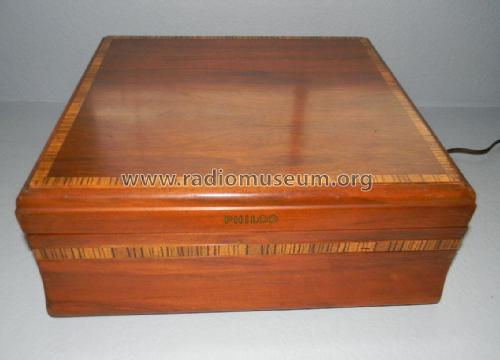

• Model: 42-RP-2 Wireless Record Player - Philco, Philadelphia Stg. Batt

• Shape
• Tablemodel, with any shape - general.

• Notes

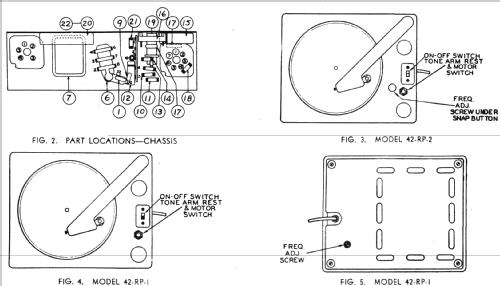

• Wireless Record Player, transmitting on 530-580 kc (adjustable). Models 42-RP-1 and 42-RP-2 are similar except for cabinets (42-RP-2 has a lid) and a minor circuit change (42-RP-1 is tuned by a capacitive trimmer; 42-RP-2 is tuned by an adjustable slug in a coil).

• Price in first year of sale
• 23.00 $

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 14 = 1944 = before 1943

• Mentioned in
• Philco Radio 1928-1942

• Literature/Schematics (1)
• Philco 1942 RMS Yearbook
