43X (43, 43AC) Early

Philco, Philadelphia Stg. Batt. Co.; USA

Data
Forum
Pictures
Collections

  • Year
  • 1932
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 50852

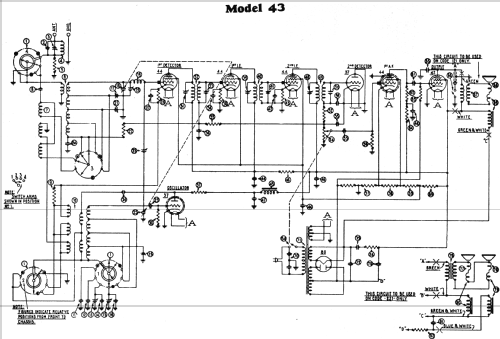

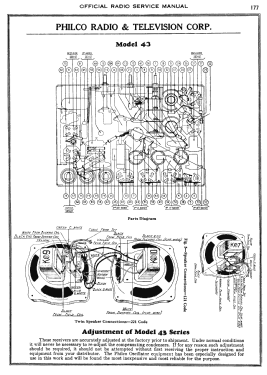

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 450 kHz; 2 AF stage(s)
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 43X [Early] - Philco, Philadelphia Stg. Batt
  • Shape
  • Console with any shape - in general
  • Notes
  • Model 43 was Philco's first integrated multiband radio. There were six versions, depending on cabinet style.

    Model 43B was a cathedral (1932-33) with a code 121 chassis. There were two 43H highboys, an early version (1932-33) which had six narrow vertical bars through the speaker grill, and a late version (1933) with a shield-shaped speaker grill; both had a code 121 chassis.

    There were three versions of the 43X floor-tye console. The early version (1932) had an arched control panel and a large open inclined sounding board with dual speakers and used the code 221 chassis. The middle version (1932-33) had a rectangular control panel and four columns to the sides of the sounding board; it had dual speakers with the code 221 chassis. The late version (1933) had a rectangular control pattern and a large open inclined sounding board; it had a single speaker and used the code 121 chassis.
  • Price in first year of sale
  • 100.00 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Radio College of Canada
