- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1946
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 50865
Beitman
By courtesy of William Kendrick, USA
Copy gen. von Steve Tardi Radio Attic
Scanned from the Philco Folder for 1946.
Scanned from the Philco Folder for 1946.
Scanned from the Philco Folder for 1946.

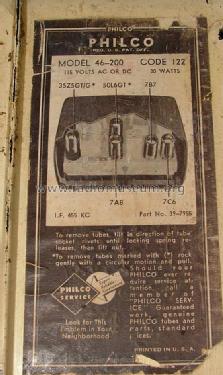

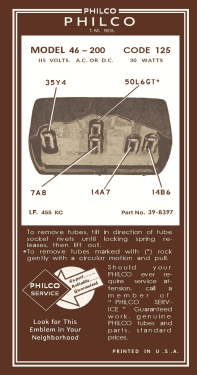

RECONSTRUCTED LABEL
RECONSTRUCTED LABEL
RECONSTRUCTED LABEL
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 46-200-I - Philco, Philadelphia Stg. Batt
- Shape
- Tablemodel, with any shape - general.
- Notes
-

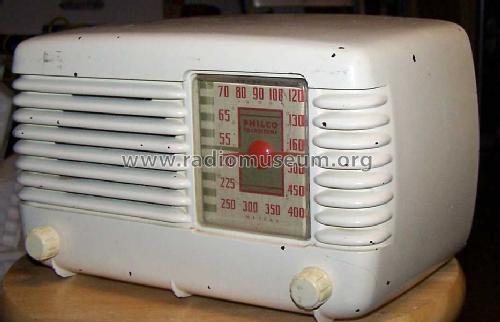

Cabinet has Ivory coating. Without coating the Philco model name is 46-200 in Walnut.
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 16 = ca. 1948 and before
- Mentioned in
- A Flick of the Switch 1930-1950
- Literature/Schematics (1)
- Beitman Radio Diagrams, Vol. 07, 1947 (Philco Home Radio Yearbook 1946-1947)
- Literature/Schematics (3)
- Philco Folder for 1946.
