46-420 "Hippo" Code 125

Philco, Philadelphia Stg. Batt. Co.; USA

Data
Forum
Pictures
Collections

  • Year
  • 1946
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 99473

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 105-120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: 46-420 "Hippo" Code 125 - Philco, Philadelphia Stg. Batt
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

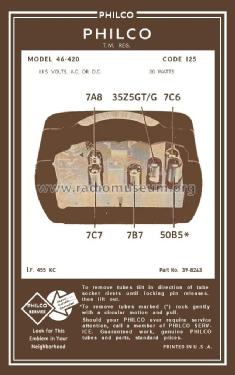

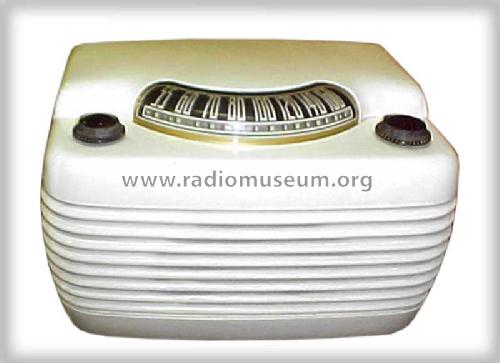

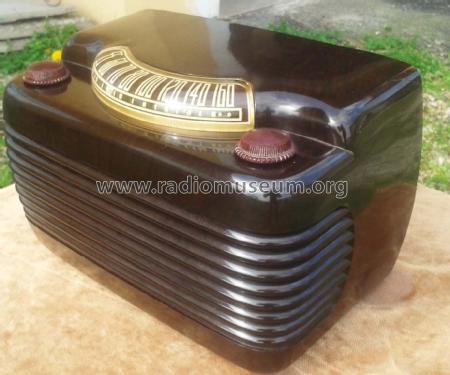

  • 46-420 "Hippo" is a family of radio models. Code 125 uses as output tube 50B5 in stead of 50L6GT. See also Code 128 and Code 121 for the Pilco models 46-420. Hippo is a designation given to that radio by USA consumers due to the fact that the radio appears to look like a hippopotamus. We have only added this nickname to this model page.
  • Literature/Schematics (1)

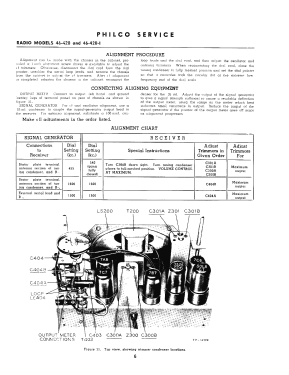

  • Philco Home Radio Yearbook 1946-1947 page 57-66
  • Author
  • Model page created by Gidi Verheijen. See "Data change" for further contributors.
