• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1933/1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 138877

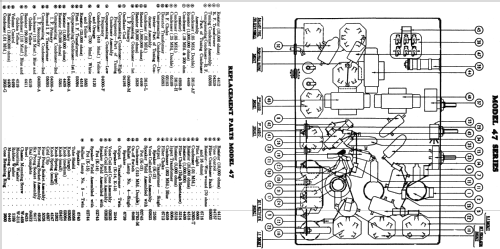

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 44 36 44 37 37 37 43 43

• Main principle
• Superhet with RF-stage; ZF/IF 260 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Direct Current supply (DC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 47H [Late] - Philco, Philadelphia Stg. Batt

• Shape
• Console, Highboy (legs > 50 %).

• Notes
• The Philco model 47 series uses a single-band 8-tube chassis designed for DC power.

  The standard 47 chassis is for 115 VDC power, while the 47E (Export) chassis is for 230 VDC and uses a ballast tube. Code 121 chassis is for a single speaker (and type 4 ballast in export version); code 221 is for dual speakers (and a type 5 ballast in export version).

  There were seven distinct models with different cabinet styles. Model 47B (1932-34) is a cathedral with single speaker. The cathedral cabinet, which was used on many other models in this time period, has a spade-shaped speaker opening and a recessed panel.

  Model 47D is a single speaker highboy with doors; the early version (1932-33) has a full-box bracing system connecting its six legs. The late version (1933-34) has multiple changes in the cabinet, most notably a simpler leg bracing system with no bar between the front two legs.

  47H is a single speaker highboy without doors. The early version (1932-33) has an ornately embellished, slightly arched speaker opening and full-box bracing of its six legs. The late version (1933-34) has a shield-shaped speaker opening and no bracing bar between its front two legs.

  Model 47X is a floor-type console with inclined sounding board and dual speakers. On the early version (1932-33), the inclined sounding board is nearly the full width of the cabinet, and the control panel is arched. On the late version (1933-34), the sounding board is narrower, and the control panel is rectangular.

• Price in first year of sale
• 80.00 $

• Circuit diagram reference
• Rider's Perpetual, Volume 3 = 1933 and before

• Mentioned in
• Philco Radio 1928-1942

• Literature/Schematics (1)
• Rider's Perpetual, Volume 8 = 1937 and before (Philco 1928-36 Wiring Diagrams, Parts Lists, and Essential Service Data)

• Author
• Model page created by Thomas Albrecht. See "Data change" for further contributors.
