48-1200 Automatic Record Player

• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1948/1949

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 101016

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 14B6 50L6GT

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm

• Power out
• 1.5 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: 48-1200 Automatic Record Player - Philco, Philadelphia Stg. Batt

• Shape
• Tablemodel, with any shape - general.

• Notes

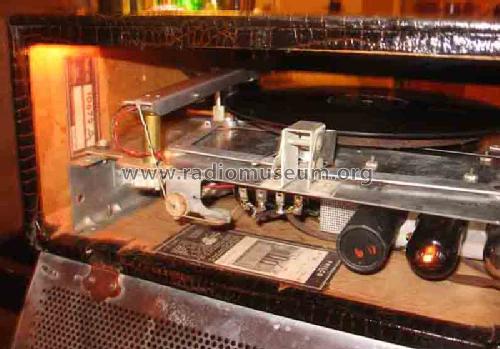

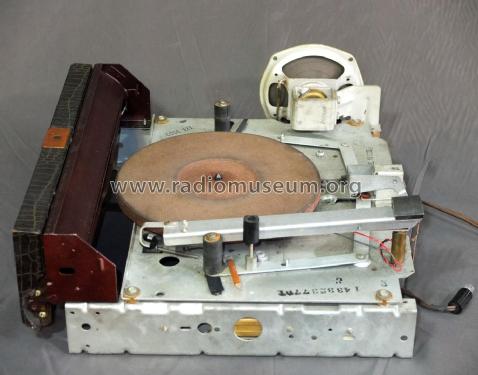

• Selenium Rectifier. The Philco Model 48-1200 is an AC Operated Record Player with 2 Tube Amplifier and Speaker.

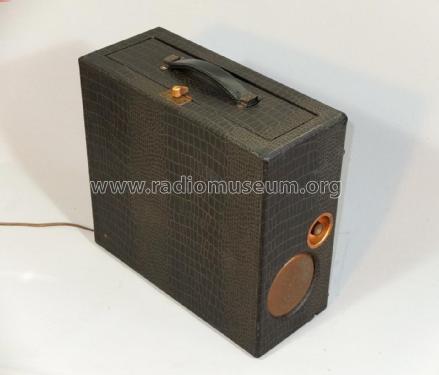

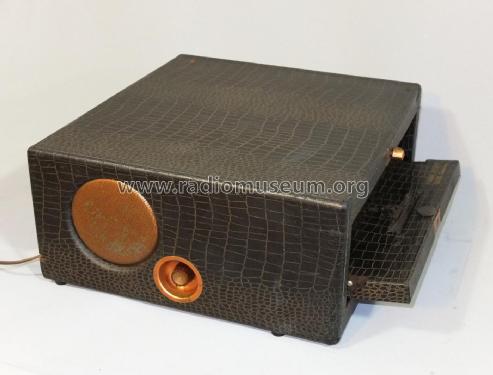

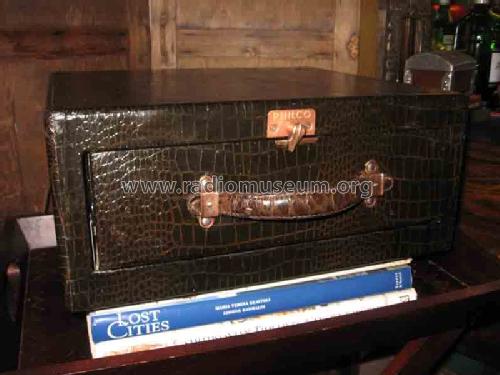

  Luggage type case of Alligator-Grain Leatherette.

• Mentioned in
• Philco Service

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 12-47, Set 29, Folder 20)

• Literature/Schematics (3)

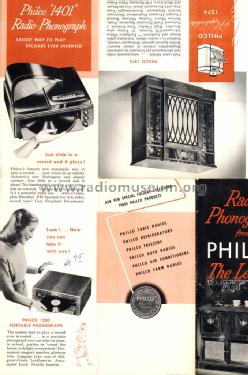

• Philco Folder for 1948 and for 1949.

• Author
• Model page created by Gidi Verheijen. See "Data change" for further contributors.
