- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1950 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 126579
Ebay auction by user dandalin 360692246245
Ebay auction by user dandalin 360692246245
Ebay auction by user dandalin 360692246245

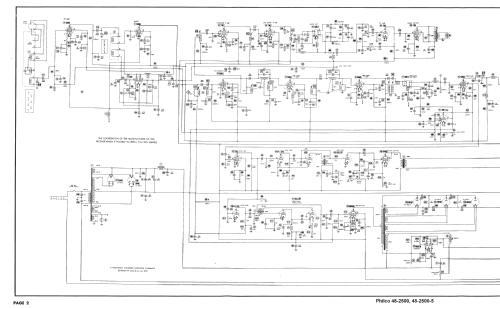

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 29
- Valves / Tubes
- 6AG5 6AG5 6J6 6AG5 6AG5 6AG5 6AL5 6AG5 7AD7 6AL5 7B6 7W7 7W7 6AL5 7B4 7B5 7B5 7F8 6SL7GT 6V6GT 6SL7GT 6BG6G 6AS7G 1B3GT 1B3GT 1B3GT 5U4G 5U4G TP400
- Main principle
- Superheterodyne (common)
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.5 inch = 24.1 cm
- Material
- Wooden case
- from Radiomuseum.org

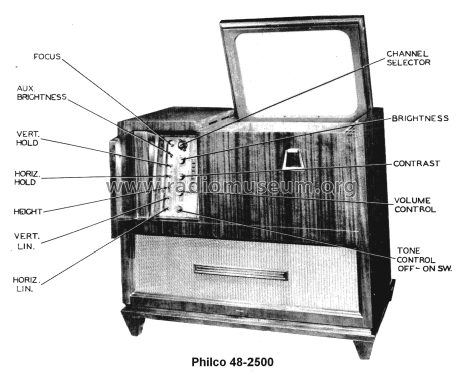

- Model: 48-2500 - Philco, Philadelphia Stg. Batt
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Projection screen system 48-2500..
Any eight Channels of Channels 2 tru 13.
- Source of data
- -- Original prospect or advert
- Mentioned in
- Photofact Folder, Howard W. SAMS (Vol.9/50 Date 3-50 89-10 Set 89 Folder 10)
- Author
- Model page created by Mario Coelho. See "Data change" for further contributors.
