- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1947/1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 197793
SAMS Photofact 8/48 Folder 4813-15 Set 43
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- AC/DC-set / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

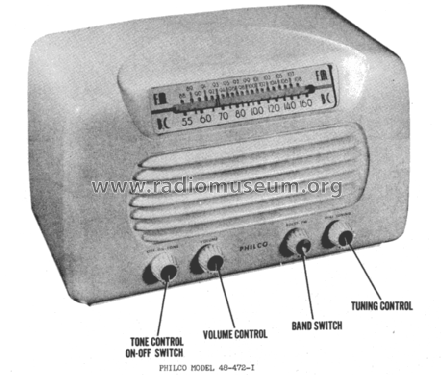

- Model: 48-472-I - Philco, Philadelphia Stg. Batt
- Shape
- Tablemodel, with any shape - general.

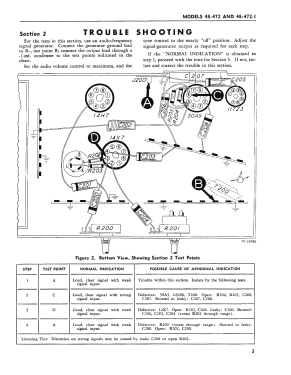

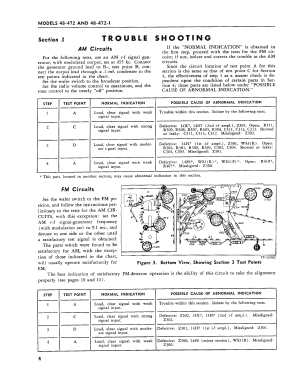

- Literature/Schematics (4)
- Photofact Folder, Howard W. SAMS (Set 43, Date 8/48, Folder 4813-15)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
