49-1175 Code 121

• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1949

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 164848

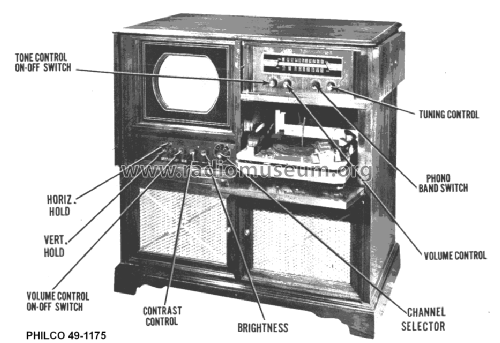

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 32

• Valves / Tubes
• 6AG5 6AG5 6J6 6AG5 6AG5 6AG5 6AG5 6AL5 12AU7 7F7 6BA6 6AU6 6AL5 6AU6 6K6GT 7N7 7N7 6K6GT 7N7 6BG6 5U4 1B3GT 5U4G 7Z4 12AU6 14F8 12AU7 6BJ6 6BJ6 19T8 50C6G 10BP4

• Main principle
• Superhet with RF-stage; ZF/IF 22100 kHz; 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.5 inch = 24.1 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 49-1175 Code 121 - Philco, Philadelphia Stg. Batt

• Shape
• Console with any shape - in general

• Notes

• round CRT (10BP4) b/w TV with US standard VHF tuner.

  Tuning range 2 thru 13
  Record changer Model M-9C

• Source of data
• -- Original prospect or advert

• Mentioned in
• Photofact Folder, Howard W. SAMS (9/1949 No. 4918-6 Set 70 Folder 6)

• Author
• Model page created by Robin Roeckers. See "Data change" for further contributors.
