• Year
  • 1949
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 50949

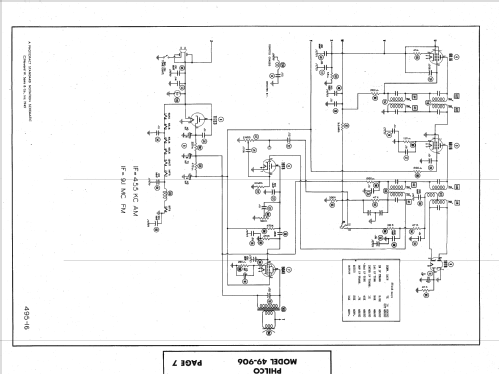

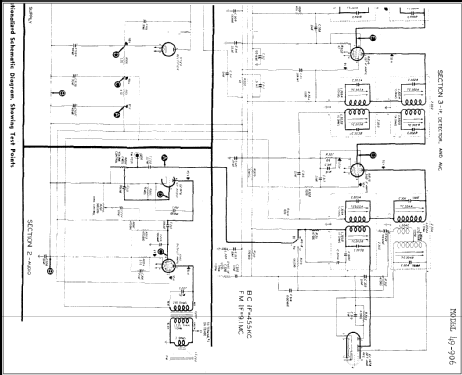

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 455/9100 kHz
  • Tuned circuits
  • 8 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • AC/DC-set / 105 - 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

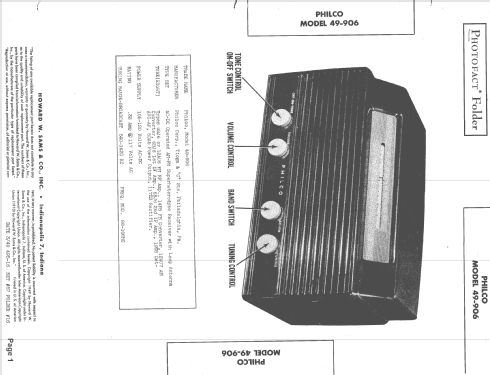

  • Model: 49-906 - Philco, Philadelphia Stg. Batt
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 14.5 x 9 x 9 inch / 368 x 229 x 229 mm
  • Net weight (2.2 lb = 1 kg)
  • 4.9 kg / 10 lb 12.7 oz (10.793 lb)
  • External source of data
  • Ernst Erb

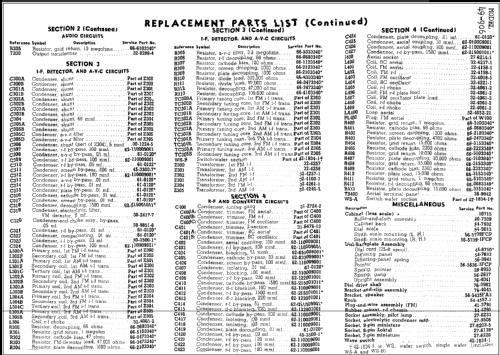

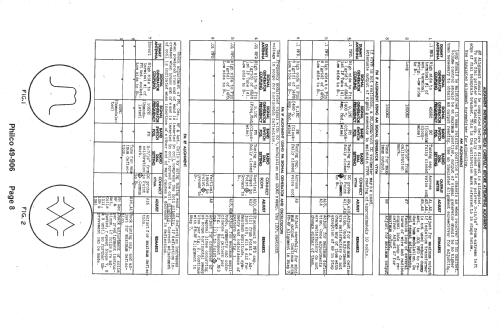

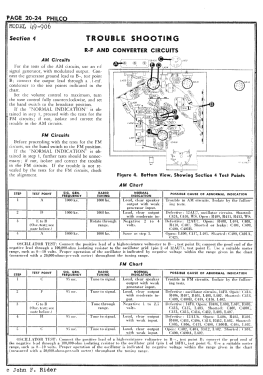

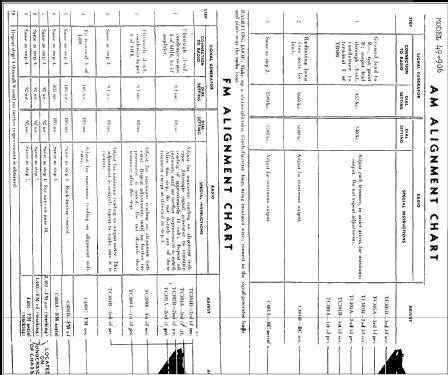

  • Circuit diagram reference
  • Rider's Perpetual, Volume 20 covering 1950
