50-T1104 (Code 123)

• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1949 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 112771

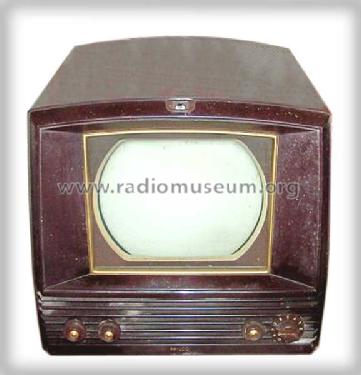

• Picture
• Schematics

Previous Next

Previous Next

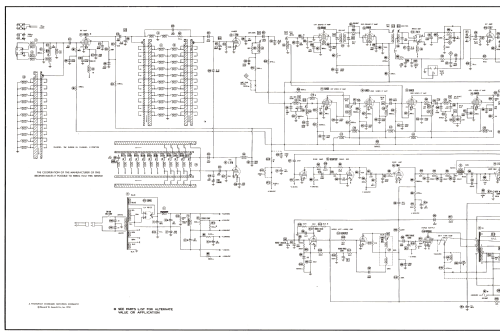

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 22

• Valves / Tubes
• 6BC5 or 6AG5 7F8 6AG5 6AG5 6AG5 6AG5 12AU7 6V6GT 12AU7 6BA6 6AU6 7X7 6V6GT 6SN7GT 7B4 6AQ5 6SN7GT 6BG6G 6W4GT 1B3GT 5U4G 12LP4 or 10BP4

• Main principle
• Superhet with RF-stage; ZF/IF 26600 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Bakelite case

• from Radiomuseum.org
• Model: 50-T1104 - Philco, Philadelphia Stg. Batt

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 18 x 16 x 16 inch / 457 x 406 x 406 mm

• Notes

• Philco model 50-T1104 (Code 123) is a 12” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with VHF tuner 76-5433 or 76-4402-6 and picture tube 12LP4 or 10BP4.




• Source of data
• -- Collector info (Sammler)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 114, Folder 9 dated 11-50)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
