51-T1872 (Code 122)
Philco, Philadelphia Stg. Batt. Co.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1951 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 348206

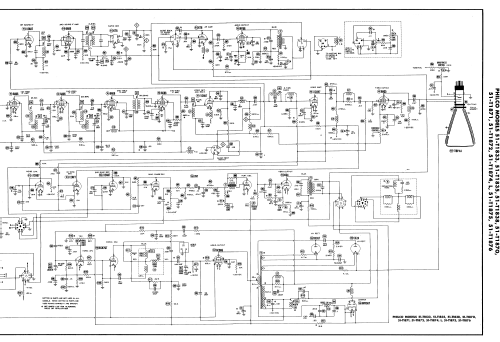

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 26
- Valves / Tubes
- 6CB6 12AV7 6AU6 6AU6 6AU6 6CB6 12AU7 12AV7 6AQ5 6AU6 6T8 6Y6G 12AU7 7N7 6S4 6SN7GT 6CD6G 6BY5G 1B3GT 1X2 5U4G 5U4G 7A8 7B7 7B6 17BP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 51-T1872 - Philco, Philadelphia Stg. Batt
- Shape
- Console with any shape - in general
- Notes
-
Philco model 51-T1872 is a 17” b/w TV with US standard VHF tuner channels 2 thru 13.

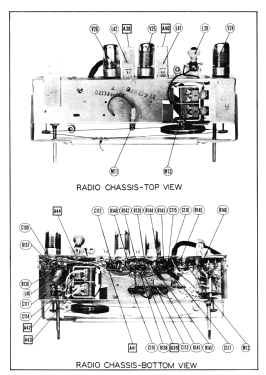

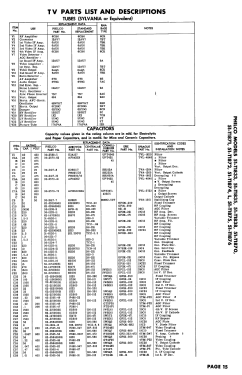

Equipped with a VHF tuner, a TV-AM - phono combination and picture tube 17BP4A. Radio-tubes are present in parts-list but no further data of radio and record player available.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 135, folder 10, dated 6-51)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
