51-T2136 Code 124
Philco, Philadelphia Stg. Batt. Co.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1951
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 281516

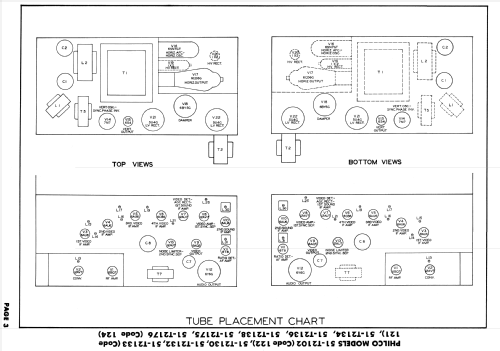

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 23
- Valves / Tubes
- 6BQ7 12AV7 6AU6 6AU6 6AU6 6CB6 12AU7 12AV7 6AQ5 6AU6 6T8 6Y6G 12AU7 7N7 6S4 6SN7GT 6CD6G 6BY5G 1X2 1X2 5U4G 5U4G 20DP4
- Main principle
- Superhet with RF-stage; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11.5 inch = 29.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 51-T2136 Code 124 - Philco, Philadelphia Stg. Batt
- Shape
- Console with any shape - in general
- Notes
-
Television Receiver with picture tube 20DP4.
Tuning range channels 2 thru 13
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 132 Folder 10 Date 5-51)
- Author
- Model page created by Geert Schulte. See "Data change" for further contributors.
